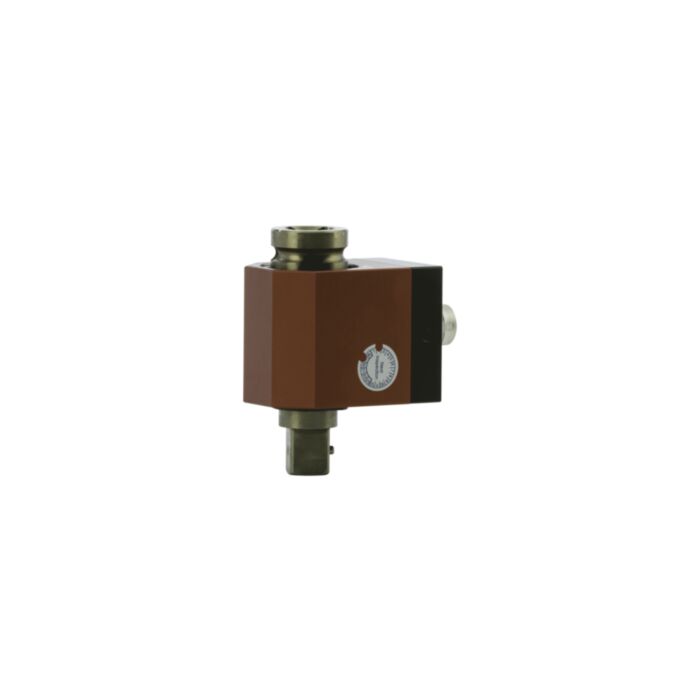

Mountz 170255 BLRTSX73F-A Rotary Torque Sensor 10Nm - 100Nm

Mountz 170255 BLRTSX73F-A Rotary Torque Sensor 10Nm - 100Nm

Manufacturer: MOUNTZ

SKU : 170255

This 10Nm - 100Nm Mountz brushless rotary torque and angle sensor is an ideal torque-measuring solution for applications where accuracy and reliability rank paramount

It can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener

PRODUCT INFO
£5,622.05 £4,685.04
In stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Non-contact signal transfer and maintenance free.
  • Angle Output: 2-channel quadrature, 360 pulses per rotation.
  • Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can also be measured too.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
  • Compact design & bi-directional.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX73F-A when connected to the PTT or LTT torque analysers.

WARNING! Not recommended for impact wrenches.

Technical Details

Manufacturer Mountz
Accuracy +/- 2%
Input Drive Type Square
Output Drive Type Square
Height 58.42 mm
Maximum Torque 100 Nm
Minimum Torque 10 Nm
Width 38.1 mm
Input Drive Size [Imperial] 1/2"
Output Drive Size [Imperial] 1/2"
