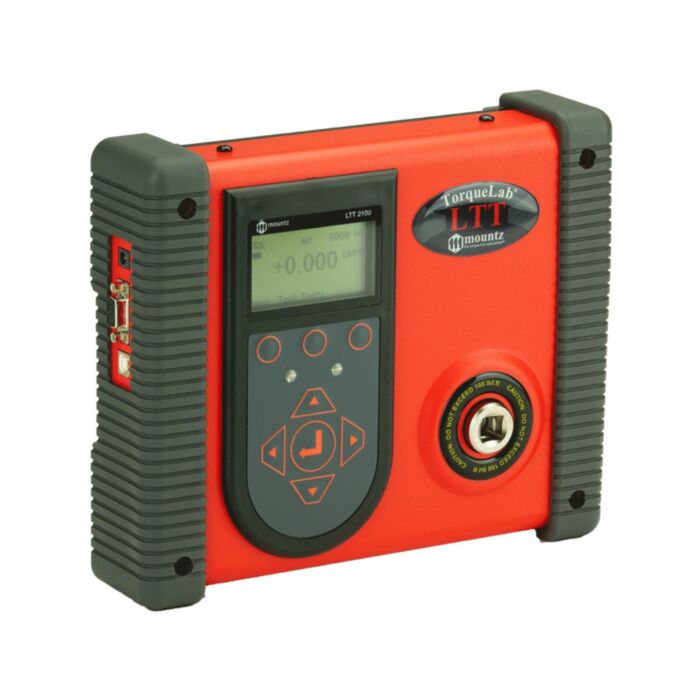

Mountz 068406 LTT100F Torque Analyser 13.56Nm - 135.6Nm

Mountz 068406 LTT100F Torque Analyser 13.56Nm - 135.6Nm

Manufacturer: MOUNTZ

SKU : 068406

This 13.56Nm - 135.6Nm torque analyser is designed for calibrating tools, joint testing, auditing and measuring torque

PRODUCT INFO
£3,732.29 £3,110.24
In stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Recommended for all hand screwdrivers, wrenches or power tools.
  • Provides EZ-Plug & Play with Mountz torque sensors. This torque analyser features ARCII technology, an instant auto-recognition system of the sensor connected to the LTT.
  • Features a built-in transducer and can connect to an external torque sensor.
  • Selection of six operation modes: (Track, Peak, First Peak, Audit, Spindle Audit and Torque + Angle).
  • Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm) and two units of force measurements: (lbf and kN).
  • Features built-in tool tests operation.
  • This torque analyser has the ability to store a total of 5000 data points.
  • Real time clock for time stamping of readings and includes a USB interface to download readings to a PC.
  • Displays real time graph of torque vs. time using.
  • Features Go / No-Go LEDs that illuminate when high or low setting is achieved.
  • Has an easy-to-use menu structure, a six-digit display and connects to an external torque sensor.
  • The high capacity Li-Ion batteries ensure long life.
  • Can connect to most mv/v torque sensors and can store calibration data for up to 50 non-smart torque & force sensors.
  • The 5VDC capability allows the unit to be used with a Brushless Rotary torque sensor for testing pulse tools and high RPM tools.
  • Torque and angle data is displayed simultaneously when used with torque and angle sensors, up to 8000 RPM for angle measurement.
  • Display Accuracy is better than +/- 0.0625 of reading.
  • Five low-pass filter selections (3000, 2000, 1500, 500 and 200 Hz).
  • "Flash" memory allows upgrades to be done by the user in the field.

Technical Details

Manufacturer Mountz
Drive Type Square
Accuracy +/- 0.5%
Height 66 mm
Maximum Torque 135.6 Nm
Minimum Torque 13.56 Nm
Total Length 279 mm
Weight 8 lb
Width 229 mm
Input Drive Size [Imperial] 1/2"
