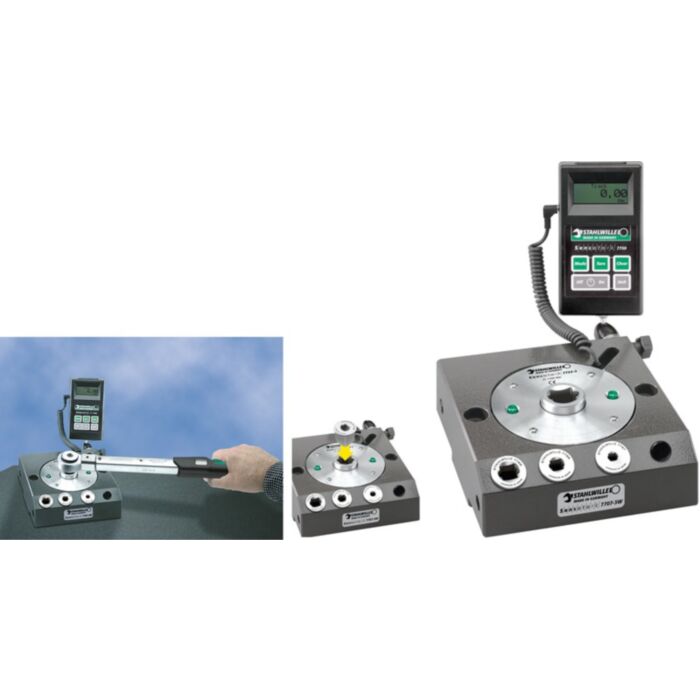

Stahlwille 96521082 Torque Tester 25Nm - 1100Nm

Stahlwille 96521082 Torque Tester 25Nm - 1100Nm

Manufacturer: STAHLWILLE

SKU : 96521082

EAN13 : 4018754181155

25Nm - 1100Nm electronic torque tester

£4,254.08 £3,545.07
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £3,545.07 £4,254.08
10+ £3,207.45 £3,848.94

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Has kit for attaching the unit to a workbench or wall in a horizontal or vertical testing position for clockwise and anticlockwise use.
  • The units of measurement on this torque tester are: Nm,,
  • The easily interchangeable transducers are attached to the holder by means of a QuickRelease safety lock.
  • This unit has low lateral forces thanks to low-profile transducers and features automatic detection of the transducer.
  • It is flexible and user friendly because the unit can be used horizontally or vertically and the display unit can be placed in many positions.
  • 2% to 100% of rated value.
  • The software (with inclusive USB hub and jack cable), enables readings to be transferred to a PC for documenting and for generating calibration certificates in accordance with DIN EN 6789:2003 (no separate power supply needed, power comes from PC).
  • While individual transducers are being recalibrated, the torque tester can remain on-site for further use.
  • Wide range of application (-20°C to +60°C).
  • Complies with DIN 51309: 2005, Class 2 and DKD-R 3-8: 2003.
  • Comes with certificate.

This unit includes-

  • Transducer
  • Holder.
  • Display unit.
  • Tripod for display unit (with 1.5 metre cable).
  • Spiral cable.
  • Mains adaptor (11V-23V with interchangeable socket). Also a direct connection to 12V in-car supply is possible.
  • Has a square drive adaptor (No 7707-2W, No 7707-2-1W, No 7707-2-2W, No 7707-3W).
  • Supplied in sturdy plastic case.

Technical Details

Drive Type Square
Standards/Certifications Complies with DIN 51309: 2005, Class 2 and DKD-R 3-8: 2003 and comes with certificate.
Height 180 mm
Input Drive Size 0.75 "
Maximum Torque 1100 Nm
Minimum Torque 25 Nm
Total Length 215 mm
Weight 7.5 kg
Width 165 mm
