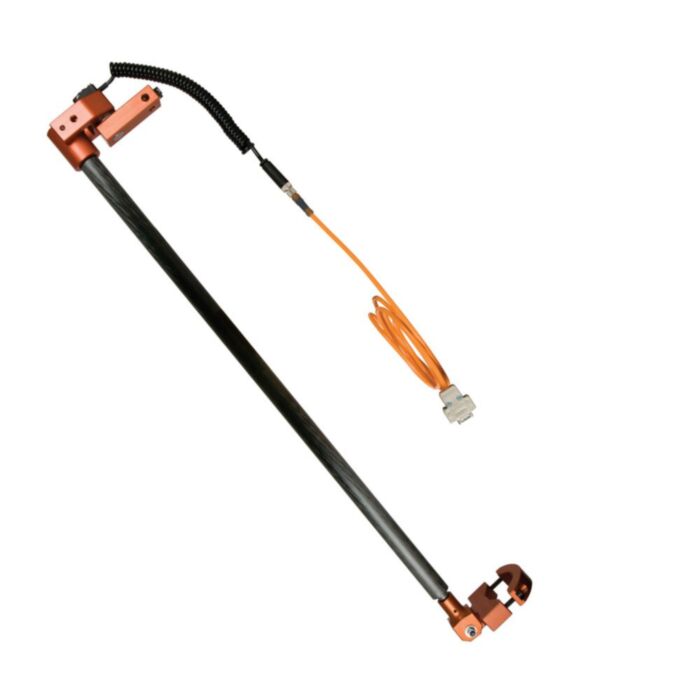

Mountz 260213 EZ-30T/1500 APC Posi-Control Telescoping Torque Arm

Mountz 260213 EZ-30T/1500 APC Posi-Control Telescoping Torque Arm

Manufacturer: MOUNTZ

SKU: 260213

Perfect your assembly process by ensuring that every screw is in the right location and torqued to spec

Fully programmable sequence operation

Detects cross threading, omissions, unfinished rundowns and cycle complete

Easy and fast set-up

Click here for product info
£5,318.28 £4,431.90
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £4,431.90 £5,318.28
10+ £4,254.62 £5,105.54
25+ £3,988.71 £4,786.45

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • The Mountz EZ-Glider position control telescoping torque arms help manufacturers detect and eliminate costly screw-fastening errors during the assembly process.
  • Designed to reduce the risk of improperly fastened screws, ensuring that every screw is in the correctly tightened in the correct sequence.
  • Consisting of a torque reaction arm with encoders mounted at the base and a control box. The control box is used for programming and it tracks the axis movement by converting angle counts to the precise position of the screwdriver. The location is calculated from encoder values, allowing the operator to easily teach the torque arm a programmed sequence pattern and then use it to control the assembly process.

Features

  • Be confident that every screw is in the correct location at the right torque.
  • Fully programmable sequence operation.
  • With long arm reach capability up to 6 1/2 ft.
  • Error proofing.
  • Detects cross threading, omissions, unfinished rundowns and cycle completions.
  • Compatible with DC Controlled Tools, torque electric screwdrivers (with transformers or controllers), air tools (ported).
  • Password protection.
  • Can interface with most intelligent driver systems that store multiple torque programs and has external digital I/O control.
  • Eliminates torque reaction of power tools.
  • Can be used with a variety assembly tools.
  • Quick and easy to setup. Self teaching and automation program mode.
  • Programmable: Positioning Tolerance, Min. and Max. time for Poka Yoke control (automatic or manual) and 99 memory points.
  • Made from lightweight and strong carbon fibre, the arm collapses like a telescope.
  • The arm is simple and easy to use, requires little space and will not disrupt production flow.
  • Comfortable tool operation and increased production.
  • Can be installed on a wall, workbench and a standard rail or trolley system.
  • Ultra reliability and will not require maintenance.
  • Operates with touch posi-control device.


  • Torque Arm is available in 3 options:
  • APC model - Equipped with one angle coder.
  • LPC model - Equipped with one cable length coder.
  • LAPC model - Equipped with one cable length coder & one angle coder.

Technical Details

Manufacturer Mountz
Material Carbon Fibre
Maximum Working Torque 22.1 ft-lb
Maximum Working Torque [Nm] 30 Nm
Weight 1179.34 g
Clamp Diameter 1 - 2"
Maximum Arm Reach 59"
Minimum Arm Reach 25.8"
Tool Position Option P1
