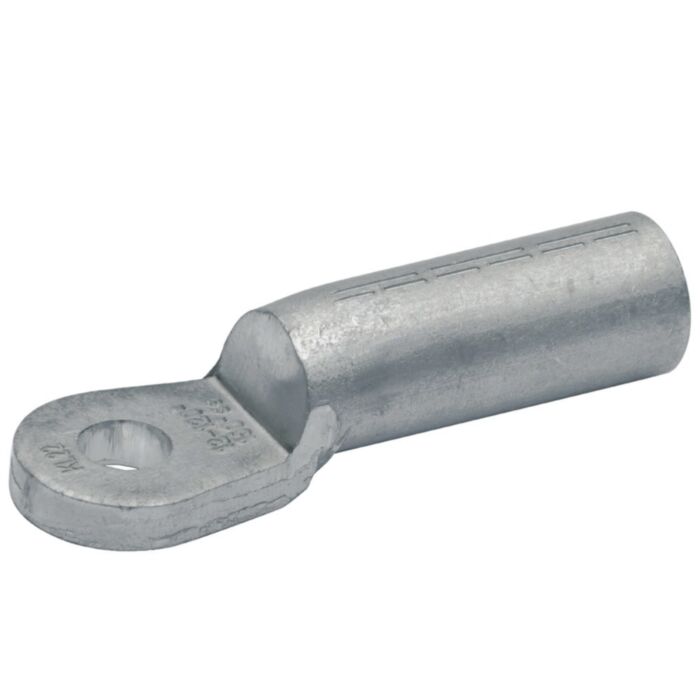

Klauke 269R16 (M16) 120mm²/150mm² Compression Cable Lug with Barrier

Klauke 269R16 (M16) 120mm²/150mm² Compression Cable Lug with Barrier

Manufacturer: KLAUKE

SKU : 269R16

For non-tension connections of aluminium conductors to DIN EN 60228 and aluminium cables to DIN EN 50182

Cable lug for pre-rounded sector shaped conductors

To DIN 46329

With code number for clear tool assignment

Filled with contact grease for optimum transfer resistance

Click here for product info
£3.73 £3.11
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £3.11 £3.73
50+ £2.64 £3.17
100+ £2.33 £2.80
1000+ £2.02 £2.42

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • This 120mm²/150mm² compression cable lug features a barrier design with oil stop.
  • Has a simple and safe connection due to the flat contact surfaces and internal chamfer.
  • With code number for clear tool assignment.
  • Made from E-aluminium, which is bright.

Additional Information

  • * = not standardised
  • 70mm² - 240mm² UL-tested
  • re = round single solid wire, rm = round multi-stranded, se = sector shaped single solid wire, sm = sector shaped multi-stranded, sector shaped conductors must be pre-rounded

Cable Compatibility

Cable typeDescription
Single-strand compacted sector-shaped conductor 90° (Class 1 according to DIN EN 60228) made from aluminium or aluminium alloy.
Multi-strand compacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand uncompacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Single-strand compacted sector-shaped conductor 120° (Class 1 according to DIN EN 60228) made from aluminium or aluminium alloy.
Single-strand conductor (Class 1 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Copper stranded conductors (DIN 48201-1), aluminium or aluminium alloy conductors for overhead lines (DIN EN 50182).

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M16
Lug Material Aluminium
Lug Style Compression Cable Lug
a [See Images] 56 mm
b [See Images] 30 mm
Nominal Cross-Section [re/se] 150 mm²
Nominal Cross-Section [rm/sm] 120 mm²
Total Length 80 mm
d1 [See Images] 14.7
d2 [See Images] 17
d4 [See Images] 23
