Klauke A22SET 10mm² - 300mm² 10 Piece Crimping Die Set

Klauke A22SET 10mm² - 300mm² 10 Piece Crimping Die Set

Manufacturer: KLAUKE

SKU : A22SET

EAN13 : 4012078596206

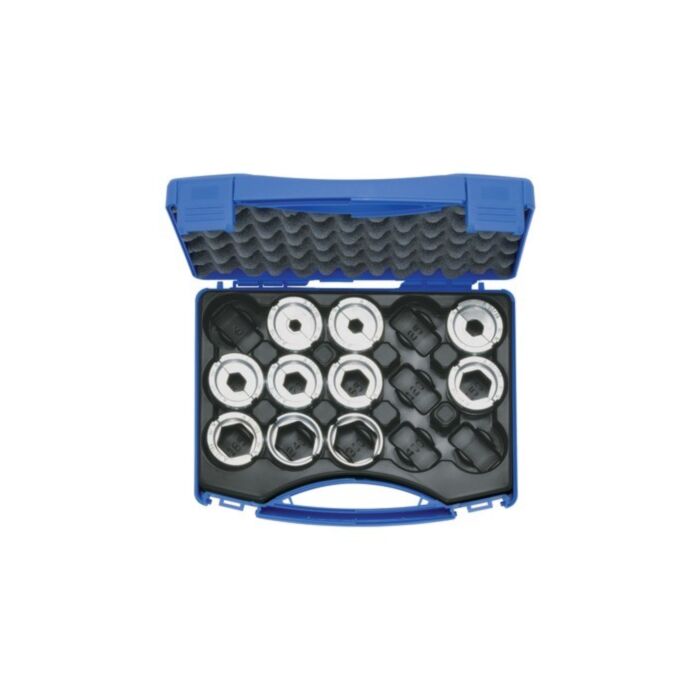

10 piece crimping die set which ranges between cross-sections 10mm² - 300mm²

Click here for product info
2 questions have been answered about this product
£662.22 £551.85
In stock
  • 2 In stock
  • Estimated UK Delivery Time: Next Day Delivery

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £551.85 £662.22
5+ £541.72 £650.06
10+ £525.13 £630.16
25+ £503.02 £603.62

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Suitable for crimping aluminium compression cable lugs and connectors according to DIN, as well as aluminium/copper compression cable lugs and connectors (aluminium side).
  • The crimp dies in this set crimp with a hexagonal profile.
  • All dies in the set are stored in a plastic case which is provided.
  • Can be used with the following Klauke crimp tools -

Technical Details

Manufacturer Klauke
Crimp Profile Hexagonal
Crimp Die Set Yes
Cross-Section From 10 mm²
Cross-Section To 300 mm²

Customer Questions & Answers

Customer Questions

Is this compatible with the KLAUKE EK 120/32 CFM and the KLAUKE EK 135 FTCFM?

The dies you need would for those tools are the K13 series, not the K22 series. We can supply all Klauke dies and tools.

What is the difference between A, L and R series dies please?

A22set is for aluminum crimps. D22set is to DIN standard E.g. DIN 46235 and DIN 46267. R22set is to EN standard (international and European standards). L22set would just be a standard copper crimp die designed for the UK market. There is technically no conformity needed for UK industrial crimps unless stated by the lug manufacturer (most people using SWA or Klauke L series lugs would use this).
Did you find what you were looking for?

Set Includes

Product Crimp Profile Cross-Section mm² [re/se] Cross-Section mm² [rm/sm] Crimp Width Nominal Cross-Section
A2250 Hexagonal 70 50 - -
A2270 Hexagonal 95 70 7 mm -
A2235 Hexagonal 50 35 7 mm 35 mm²
A22150 Hexagonal 185 150 7 mm -

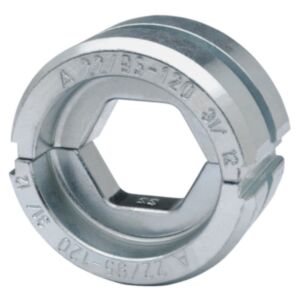

A22240 Hexagonal 300 240 5 mm -
A2295120 Hexagonal 120-150 95-120 7 mm -

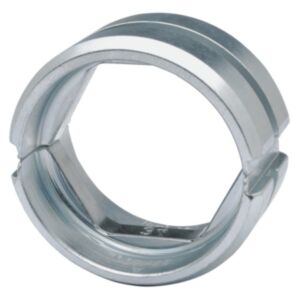

A22300 Hexagonal - 300 5 mm 300 mm²
A22185 Hexagonal 270 185 7 mm -
Part No. [Cross-section] re/se [Cross-section] rm/sm Code Crimp width
A221016mm²10mm²107mm
A22162525mm² - 35mm²16mm² - 25mm²127mm
