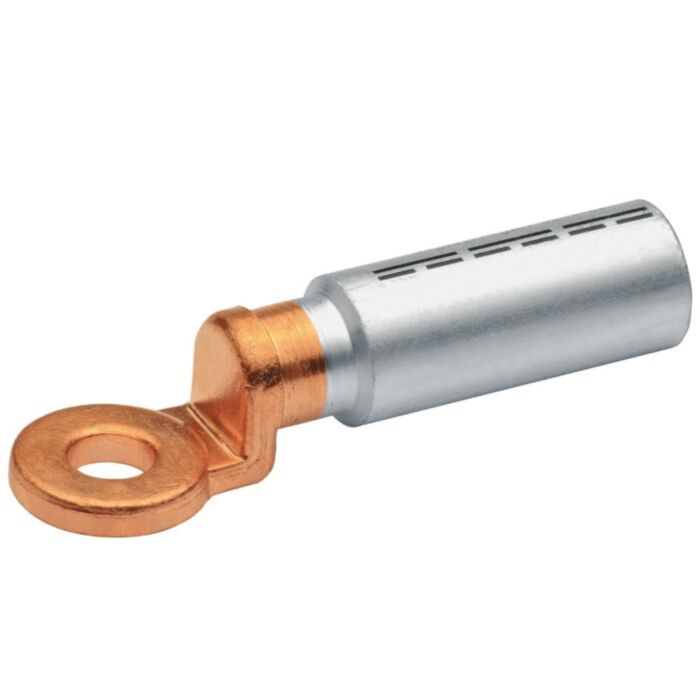

Klauke 370R16 (M16) 150mm²/185mm² Compression Cable Lug - Copper/Aluminium

Klauke 370R16 (M16) 150mm²/185mm² Compression Cable Lug - Copper/Aluminium

Manufacturer: KLAUKE

SKU : 370R16

150mm²/185mm² compression cable lug for non-tension connections of aluminium conductors to DIN EN 60228, aluminium open wires to DIN EN 50182 and pre-rounded sector shaped conductors

Tube dimension to DIN 46329

Highly visible code number for clear tool assignment

Filled with contact grease for optimum crimp results

Click here for product info
£11.40 £9.50
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £9.50 £11.40
50+ £8.08 £9.70
100+ £7.13 £8.56
1000+ £6.18 £7.42

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • 150mm² compression cable lug for connecting non-tensioned aluminium conductors to copper connections in humid environments or outdoors.
  • Barrier design with oil stop and solid copper palm.
  • Easy to process due to crimp markings.
  • Has an internal chamfer for simple cable insertion.
  • Made from copper (EN13600) and E-aluminium, with a bright surface.

Additional Information

  • re = round single solid wire, rm = round multi-stranded, se = sector shaped single solid wire, sm = sector shaped multi-stranded, sector shaped conductors must be pre-rounded

Cable Compatibility

Cable typeDescription
Multi-strand uncompacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Copper stranded conductors (DIN 48201-1), aluminium or aluminium alloy conductors for overhead lines (DIN EN 50182).
Single-strand compacted sector-shaped conductor 120° (Class 1 according to DIN EN 60228) made from aluminium or aluminium alloy.
Single-strand conductor (Class 1 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Single-strand compacted sector-shaped conductor 90° (Class 1 according to DIN EN 60228) made from aluminium or aluminium alloy.
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M16
Lug Material Copper/Aluminium
Lug Style Compression Cable Lug
Number of Crimps Aluminium [7mm] 6
Number of Crimps Aluminium [Wide] 3
a [See Images] 62 mm
b [See Images] 30 mm
Nominal Cross-Section [re/se] 185 mm²
Nominal Cross-Section [rm/sm] 150 mm²
Total Length 104 mm
Weight Per 100 Pieces 12.7 kg
d1 [See Images] 16.3
d2 [See Images] 17
d4 [See Images] 25
