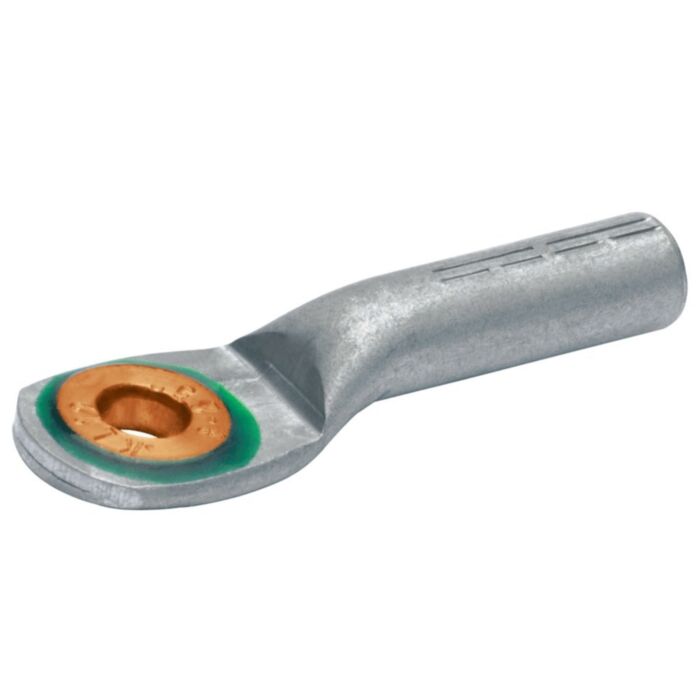

Klauke 308R16 (M16) 95mm²/120mm² Compression Cable Lug - Aluminium/Copper with Copper Eye

Klauke 308R16 (M16) 95mm²/120mm² Compression Cable Lug - Aluminium/Copper with Copper Eye

Manufacturer: KLAUKE

SKU : 308R16

For non-tension connections of aluminium conductors to DIN EN 60228 and aluminium cables to DIN EN 50182

Designed for connecting non-tensioned aluminium conductors to copper connections in humid environments

Tube dimension to specification DIN 46329

PRODUCT INFO
£7.31 £6.09
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £6.09 £7.31
50+ £5.18 £6.22
100+ £4.57 £5.48
1000+ £3.96 £4.75

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • For pre-rounded sector shaped conductors.
  • With code number for clear Klauke tool assignment.
  • Filled with contact grease for optimal transfer resistance.
  • Cu (copper) eyelet in screw-on area.
  • Easy to process due to crimp markings.
  • Designed for simple cable entry due to the precise design of the internal chamfer.
  • Made from E-aluminium and copper (EN13600) with a bright surface.

Cable Compatibility

Cable typeDescription
Single-strand compacted sector-shaped conductor 90° (Class 1 according to DIN EN 60228) made from aluminium or aluminium alloy.
Multi-strand compacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Copper stranded conductors (DIN 48201-1), aluminium or aluminium alloy conductors for overhead lines (DIN EN 50182).
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Single-strand compacted sector-shaped conductor 120° (Class 1 according to DIN EN 60228) made from aluminium or aluminium alloy.
Single-strand conductor (Class 1 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand uncompacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M16
Lug Material Copper/Aluminium
Lug Style Compression Cable Lug
Number of Crimps Aluminium [7mm] 6
Number of Crimps Aluminium [Wide] 3
a [See Images] 55 mm
b [See Images] 32 mm
Nominal Cross-Section [re/se] 120 mm²
Nominal Cross-Section [rm/sm] 95 mm²
Total Length 90 mm
Weight Per 100 Pieces 10 kg
d1 [See Images] 13.5
d2 [See Images] 17
d4 [See Images] 22
