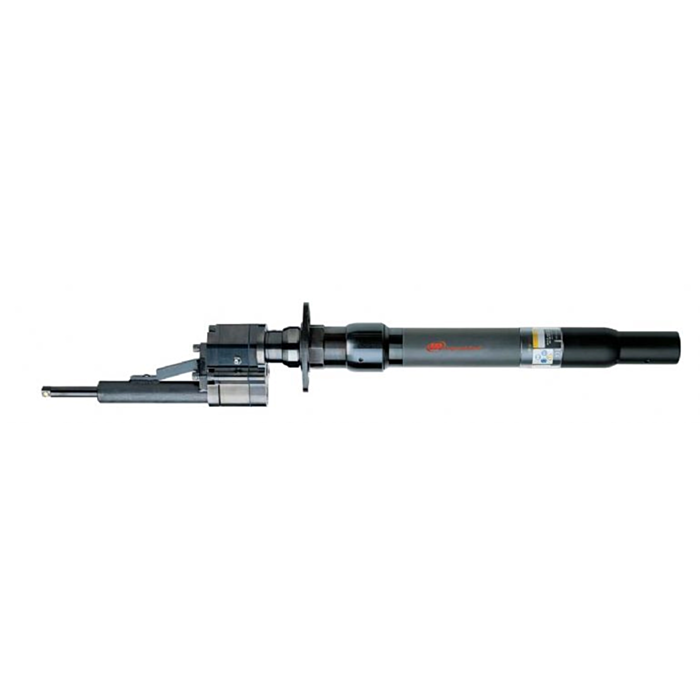

The Ingersoll Rand QE Fixtured Series of transducerised offset nutrunners provide superior accuracy and durability to meet your critical fastening requirements. Featuring a heavy-duty gear train, and reliable DC brushless motor to create a durable package, while the compact, ergonomic design helps operators keep production lines running smoothly. These tools are also easily mountable to a fixture or reaction arm.
Additional Features
- The closed loop transducerised control provides exceptionable accuracy and traceability for advanced torque control and angle strategies.
- Torque range 0.3 to 120 Nm.
- Speed range of 500 to 1,840 RPM.
- No switch on the tool, heavy-duty gear train and DC brushless motor provide exceptional durability.
- Preventive maintenance alerts.
- Bright LEDs provide visible status indicators.
- Tact alert provides positive feedback to the operator without distracting from the task.
- High-temperature motor protection.
- Comfortable ergonomic grip.
ALL PRODUCTS IN THIS RANGE
| Model |
Torque Range (Nm) |
Max Torque (Nm) |
Actuation |
Configuration |
Free Speed (rpm) |
Spindle Length (mm) |
Float (mm) |
Overall Length (mm) |
Weight (kg) |
Drive (size/style) |
| QE6ZC020P42S06 |
4.0 - 16.0 |
20 |
Controller Remote Start |
Offset |
1840 |
180 |
50 |
664 |
2.5 |
3/8 in. square |
| QE6ZC020P52S06 |
4.0 - 16.0 |
20 |
Controller Remote Start |
Offset |
1840 |
180 |
50 |
647.3 |
2.5 |
3/8 in. square |
| QE6ZC028P52S06 |
5.6 - 22.4 |
28 |
Controller Remote Start |
Offset |
1360 |
180 |
50 |
647.3 |
2.5 |
3/8 in. square |
| QE6ZC033P52S06 |
6.6 - 26.4 |
33 |
Controller Remote Start |
Offset |
1130 |
180 |
50 |
647.3 |
2.5 |
3/8 in. square |
| QE6ZC050P52S06 |
10.0 - 40.0 |
50 |
Controller Remote Start |
Offset |
760 |
180 |
50 |
647.3 |
2.5 |
3/8 in. square |
| QE8ZC055F52S06 |
11.0 - 44.0 |
55 |
Controller Remote Start |
Offset |
1470 |
180 |
50 |
722.6 |
3 |
3/8 in. square |
| QE8ZC070F62S08 |
14.0 - 56.0 |
70 |
Controller Remote Start |
Offset |
1160 |
193 |
50 |
786.4 |
3 |
1/2 in. Square |
| QE8ZC090F62S08 |
18.0 - 72.0 |
90 |
Controller Remote Start |
Offset |
900 |
193 |
50 |
786.4 |
4 |
1/2 in. Square |
| QE8ZC150F62S08 |
30.0 - 120.0 |
150 |
Controller Remote Start |
Offset |
500 |
193 |
50 |
786.4 |
4 |
1/2 in. Square |
