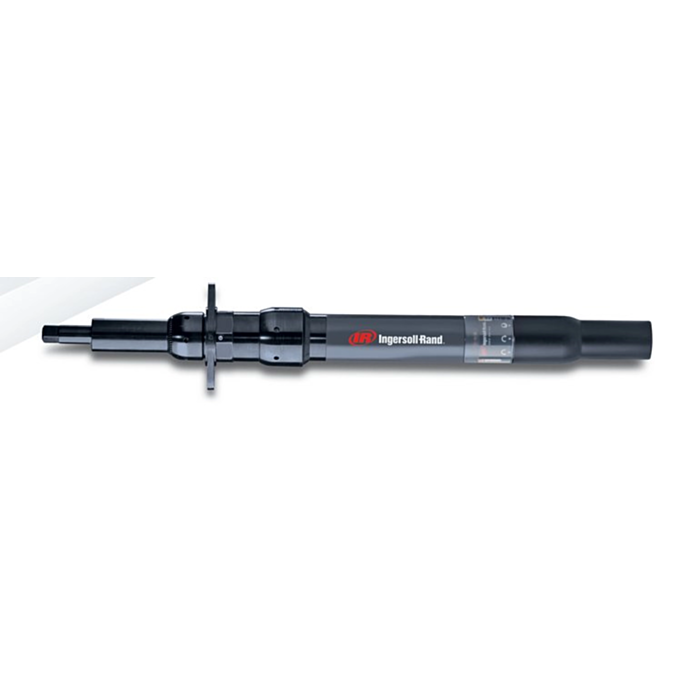

The Ingersoll Rand QE8 Series of transducerised in-line wrenches provide superior accuracy and durability to meet your critical fastening requirements, designed for tougher applications. The QE8 Series comes with a multitude of features, specially designed to enhance user experience without distracting from your task at hand, allowing you to continue your work without slowing down. Featuring a heavy-duty gear train, and reliable DC brushless motor to create a durable package, while the compact, ergonomic design helps operators keep production lines running smoothly.
Additional Features
- The closed loop transducerised control provides exceptionable accuracy and traceability for advanced torque control and angle strategies.
- Torque range 11 to 184 Nm.
- Speed range of 340 to 1470 RPM.
- Easily accessible non contact switches, heavy-duty gear train and DC brushless motor provide exceptional durability.
- Preventive maintenance alerts.
- Bright LEDs provide visible status indicators.
- Tact alert provides positive feedback to the operator without distracting from the task.
- High-temperature motor protection.
- Comfortable ergonomic grip.
ALL PRODUCTS IN THIS RANGE
| Model |
Torque Range (Nm) |
Max Torque (Nm) |
Actuation |
Configuration |
Free Speed (rpm) |
Spindle Length (mm) |
Float (mm) |
Overall Length (mm) |
Weight (kg) |
Drive (size/style) |
| QE8ST055F41S08 |
11.0 - 44.0 |
55 |
Trigger Start |
Inline |
1470 |
102.7 |
20 |
557.5 |
3 |
1/2 in. Square |
| QE8ST055F61S08 |
11.0 - 44.0 |
55 |
Trigger Start |
Inline |
1470 |
153 |
39 |
608.3 |
3.1 |
1/2 in. Square |
| QE8ST055F81S08 |
11.0 - 44.0 |
55 |
Trigger Start |
Inline |
1470 |
204 |
39 |
659 |
3.2 |
1/2 in. Square |
| QE8ST070F41S08 |
14.0 - 56.0 |
70 |
Trigger Start |
Inline |
1160 |
102.7 |
20 |
557.5 |
3 |
1/2 in. Square |
| QE8ST070F61S08 |
14.0 - 56.0 |
70 |
Trigger Start |
Inline |
1160 |
153 |
39 |
608.3 |
3.1 |
1/2 in. Square |
| QE8ST070F81S08 |
14.0 - 56.0 |
70 |
Trigger Start |
Inline |
1160 |
204 |
39 |
659 |
3.2 |
1/2 in. Square |
| QE8ST090F41S08 |
18.0 - 72.0 |
90 |
Trigger Start |
Inline |
900 |
102.7 |
20 |
557.5 |
3 |
1/2 in. Square |
| QE8ST090F61S08 |
18.0 - 72.0 |
90 |
Trigger Start |
Inline |
900 |
153 |
39 |
608.3 |
3.1 |
1/2 in. Square |
| QE8ST090F81S08 |
18.0 - 72.0 |
90 |
Trigger Start |
Inline |
900 |
204 |
39 |
659 |
3.2 |
1/2 in. Square |
| QE8ST150F41S08 |
30.0 - 120.0 |
150 |
Trigger Start |
Inline |
500 |
102.7 |
20 |
557.5 |
3 |
1/2 in. Square |
| QE8ST150F61S08 |
30.0 - 120.0 |
150 |
Trigger Start |
Inline |
500 |
153 |
39 |
608.3 |
3.1 |
1/2 in. Square |
| QE8ST150F81S08 |
30.0 - 120.0 |
150 |
Trigger Start |
Inline |
500 |
204 |
39 |
659 |
3.2 |
1/2 in. Square |
| QE8ST230F02S08 |
46.0 - 184.0 |
230 |
Trigger Start |
Inline |
340 |
346 |
50 |
827 |
5.7 |
1/2 in. Square |
| QE8ST230F02S12 |
46.0 - 184.0 |
230 |
Trigger Start |
Inline |
340 |
346 |
50 |
819 |
5.7 |
3/4 in. Square |
| QE8ST230F61S08 |
46.0 - 184.0 |
230 |
Trigger Start |
Inline |
340 |
153 |
39 |
725 |
5.5 |
1/2 in. Square |
| QE8ST230F62S12 |
46.0 - 184.0 |
230 |
Trigger Start |
Inline |
340 |
244.6 |
50 |
717 |
5.5 |
3/4 in. Square |
| QE8ST230F81S08 |
46.0 - 184.0 |
230 |
Trigger Start |
Inline |
340 |
204 |
39 |
776 |
5.6 |
1/2 in. Square |
| QE8ST230F82S12 |
46.0 - 184.0 |
230 |
Trigger Start |
Inline |
340 |
295.4 |
50 |
768 |
5.6 |
3/4 in. Square |
