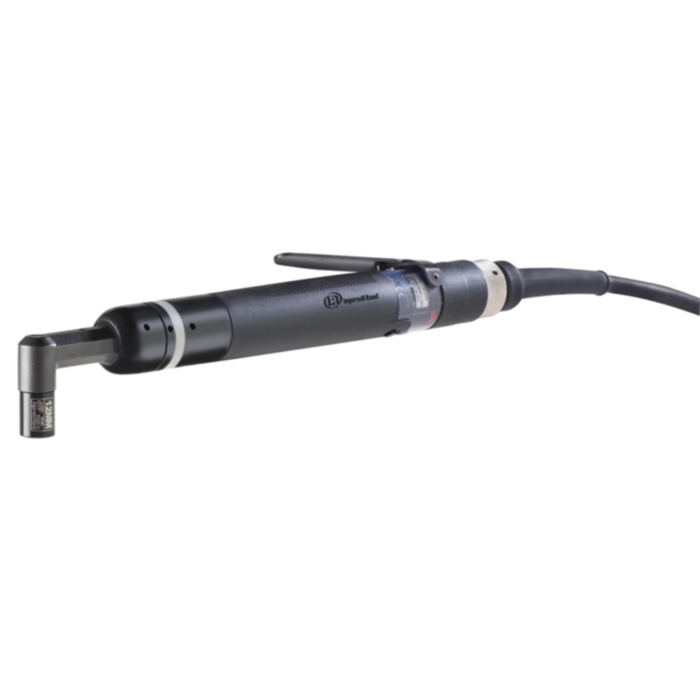

Ingersoll Rand QE Series Transducerised Fixtured Angle Wrenches 0.3 - 72 Nm

Name: Ingersoll Rand QE Series Transducerised Fixtured Angle Wrenches 0.3 - 72 Nm
SKU: QEA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

New

Ingersoll Rand QE Series Transducerised Fixtured Angle Wrenches 0.3 - 72 Nm

Manufacturer: INGERSOLL RAND

SKU: QEA

With closed loop transducerised control provides exceptionable accuracy and traceability

Speed range of 440 to 1,230 RPM

Lightweight, compact and ergonomic design

Powerful, brushless DC motor

Easily mountable to a fixture or reaction arm

Click here for product info

Out of stock

Free UK Delivery on orders over £75 including VAT

Need shopping help?

Ask a Specialist

Product Information

The Ingersoll Rand QE Fixtured Series of transducerised angle wrenches provide superior accuracy and durability to meet your critical fastening requirements. Featuring a heavy-duty gear train, and reliable DC brushless motor to create a durable package, while the compact, ergonomic design helps operators keep production lines running smoothly. These tools are also easily mountable to a fixture or reaction arm.

Additional Features

The closed loop transducerised control provides exceptionable accuracy and traceability for advanced torque control and angle strategies.
Torque range 0.3 to 72 Nm.
Speed range of 440 to 1,230 RPM.
No switch on the tool, heavy-duty gear train and DC brushless motor provide exceptional durability.
Preventive maintenance alerts.
Bright LEDs provide visible status indicators.
Tact alert provides positive feedback to the operator without distracting from the task.
High-temperature motor protection.
Comfortable ergonomic grip.

ALL PRODUCTS IN THIS RANGE

Model	Torque Range (Nm)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Overall Length (mm)	Weight (kg)	Drive (size/style)
QE4AC013BA2S06	2.6 - 10.4	13	Controller Remote Start	Angle	1200	383	1.3	3/8 in. Square
QE4AC020BA2S06	4.0 - 16.0	20	Controller Remote Start	Angle	820	383	1.3	3/8 in. square
QE4AC027BA4S06	5.4 - 21.6	27	Controller Remote Start	Angle	600	387	1.3	3/8 in. square
QE4AC034BA4S06	6.8 - 27.2	34	Controller Remote Start	Angle	470	387	1.3	3/8 in. square
QE6AC030FA4S06	6.0 - 24.0	30	Controller Remote Start	Angle	1230	429.4	1.9	3/8 in. square
QE6AC040FA4S06	8.0 - 32.0	40	Controller Remote Start	Angle	910	429.4	1.9	3/8 in. square
QE6AC055FA5S08	11.0 - 44.0	55	Controller Remote Start	Angle	650	431.3	1.9	1/2 in. Square
QE6AC080FA5S08	16.0 - 64.0	80	Controller Remote Start	Angle	440	431.3	1.9	1/2 in. Square
QE8AC065FA6S08	13.0 - 52.0	65	Controller Remote Start	Angle	1200	520	2.9	1/2 in. Square
QE8AC070FA6S08	14.0 - 56.0	70	Controller Remote Start	Angle	1100	520	2.9	1/2 in. Square
QE8AC090FA6S08	18.0 - 72.0	90	Controller Remote Start	Angle	850	520	2.9	1/2 in. Square

Technical Details

Manufacturer	Ingersoll Rand
Drive Size	3/8", 1/2"
Cordless	No
Grip Type	Angle
Torque Range [Nm]	0.3 - 72 Nm
Drive Type	Square
Actuation/Throttle Type/Switch Type	Controller Remote Start
Built-In Light	Yes
Maximum Adjustable RPM	1230
Minimum Adjustable RPM	440
Reversible	Yes
Maximum Torque	72 Nm
Minimum Torque	0.3 Nm
Total Length	520 mm
Weight	2.9 kg
Communication	USB Cable
With Display	No
With Ergonomic Tightening System [ETS]	No
Data Recording	Yes
Tool Finder	No
