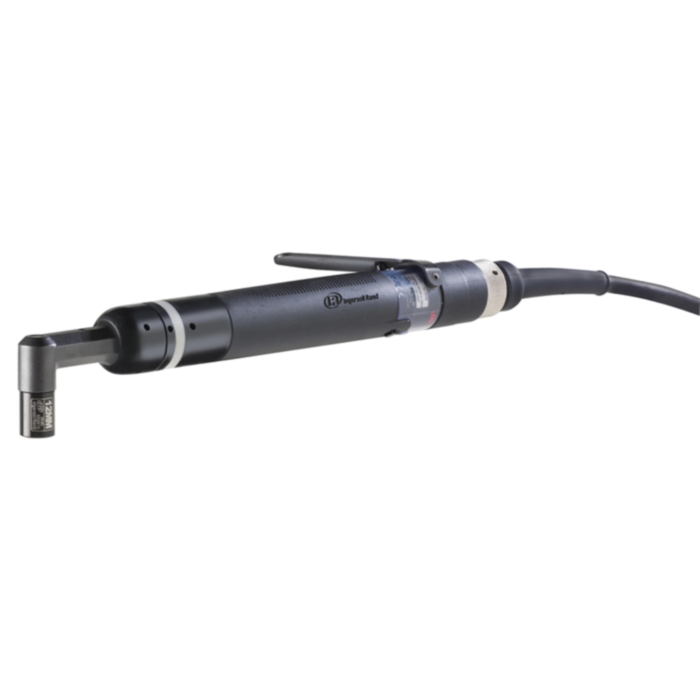

The Ingersoll Rand QE2 Series of transducerised angle wrenches provide superior accuracy and durability to meet your critical fastening requirements. Featuring a heavy-duty gear train, and reliable DC brushless motor to create a durable package, while the compact, ergonomic design helps operators keep production lines running smoothly.
Additional Features
- The closed loop transducerised control provides exceptionable accuracy and traceability for advanced torque control and angle strategies.
- Torque range 0.8 to 15 Nm.
- Speed range of 560 to 2,000 RPM.
- Easily accessible non contact switches, heavy-duty gear train and DC brushless motor provide exceptional durability.
- Preventive maintenance alerts.
- Bright LEDs provide visible status indicators.
- Tact alert provides positive feedback to the operator without distracting from the task.
- High-temperature motor protection.
- Comfortable ergonomic grip.
ALL PRODUCTS IN THIS RANGE
| Model |
Torque Range (Nm) |
Max Torque (Nm) |
Actuation |
Configuration |
Free Speed (rpm) |
Overall Length (mm) |
Weight (kg) |
Drive (size/style) |
| QE2AL003PA1S04 |
0.8 - 4 |
3 |
Lever Start |
Angle |
2000 |
312 |
0.83 |
1/4 in. Square |
| QE2AL005PA3H04 |
1.0 - 5.0 |
5 |
Lever Start |
Angle |
1590 |
318 |
0.95 |
1/4 in. Hex Detent |
| QE2AL005PA3Q04 |
1.0 - 5.0 |
5 |
Lever Start |
Angle |
1590 |
318 |
0.95 |
1/4 in. Quick Change |
| QE2AL005PA3S04 |
1.0 - 5.0 |
5 |
Lever Start |
Angle |
1590 |
318 |
0.95 |
1/4 in. Square |
| QE2AL005PA3S06 |
1.0 - 5.0 |
5 |
Lever Start |
Angle |
1590 |
318 |
0.95 |
3/8 in. Square |
| QE2AL007PA3H04 |
1.4 - 7.0 |
7 |
Lever Start |
Angle |
1100 |
318 |
0.95 |
1/4 in. Hex Detent |
| QE2AL007PA3Q04 |
1.4 - 7.0 |
7 |
Lever Start |
Angle |
1100 |
318 |
0.95 |
1/4 in. Quick Change |
| QE2AL007PA3S04 |
1.4 - 7.0 |
7 |
Lever Start |
Angle |
1100 |
318 |
0.95 |
1/4 in. Square |
| QE2AL007PA3S06 |
1.4 - 7.0 |
7 |
Lever Start |
Angle |
1100 |
318 |
0.95 |
3/8 in. Square |
| QE2AL010PA3H04 |
2.0 - 10.0 |
10 |
Lever Start |
Angle |
800 |
318 |
0.95 |
1/4 in. Hex Detent |
| QE2AL010PA3Q04 |
2.0 - 10.0 |
10 |
Lever Start |
Angle |
800 |
318 |
0.95 |
1/4 in. Quick Change |
| QE2AL010PA3S04 |
2.0 - 10.0 |
10 |
Lever Start |
Angle |
800 |
318 |
0.95 |
1/4 in. Square |
| QE2AL010PA3S06 |
2.0 - 10.0 |
10 |
Lever Start |
Angle |
800 |
318 |
0.95 |
3/8 in. Square |
| QE2AL015PA3H04 |
3.0 - 15.0 |
15 |
Lever Start |
Angle |
560 |
318 |
0.95 |
1/4 in. Hex Detent |
| QE2AL015PA3Q04 |
3.0 - 15.0 |
15 |
Lever Start |
Angle |
560 |
318 |
0.95 |
1/4 in. Quick Change |
| QE2AL015PA3S04 |
3.0 - 15.0 |
15 |
Lever Start |
Angle |
560 |
318 |
0.95 |
1/4 in. Square |
| QE2AL015PA3S06 |
3.0 - 15.0 |
15 |
Lever Start |
Angle |
560 |
318 |
0.95 |
3/8 in. Square |
