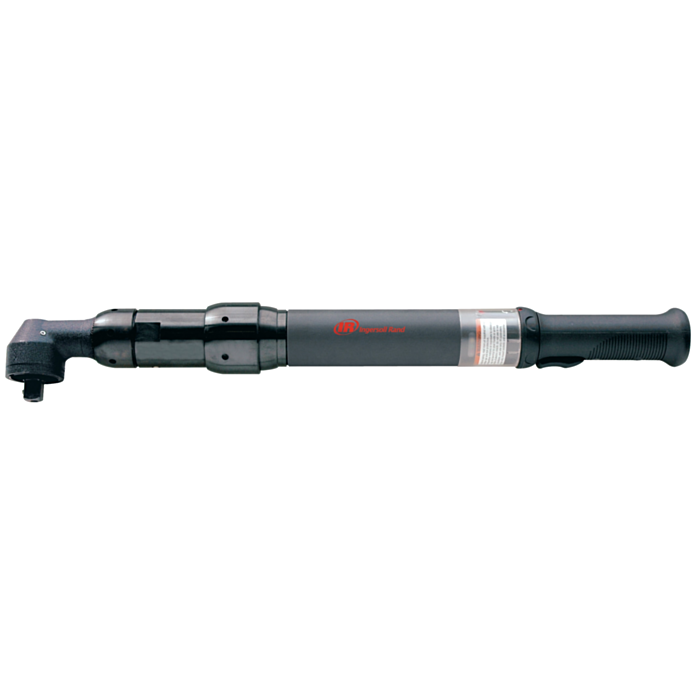

Ingersoll Rand QE8 Series Transducerised Angle Wrenches 13 - 320 Nm

Name: Ingersoll Rand QE8 Series Transducerised Angle Wrenches 13 - 320 Nm
SKU: QE8A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

New

Ingersoll Rand QE8 Series Transducerised Angle Wrenches 13 - 320 Nm

Manufacturer: INGERSOLL RAND

SKU: QE8A

With closed loop transducerised control provides exceptionable accuracy and traceability

Speed range of 170 to 1,200 RPM

Lightweight, compact and ergonomic design

Powerful, brushless DC motor

ESD-Safe & RoHS compliant

Click here for product info

Out of stock

Free UK Delivery on orders over £75 including VAT

Need shopping help?

Ask a Specialist

Product Information

The Ingersoll Rand QE8 Series of transducerised angle wrenches provide superior accuracy and durability to meet your critical fastening requirements, designed for tougher applications. The QE8 Angle Series comes with a multitude of features, specially designed to enhance user experience without distracting from your task at hand, allowing you to continue your work without slowing down. Featuring a heavy-duty gear train, and reliable DC brushless motor to create a durable package, while the compact, ergonomic design helps operators keep production lines running smoothly.

Additional Features

The closed loop transducerised control provides exceptionable accuracy and traceability for advanced torque control and angle strategies.
Torque range 13 to 320 Nm.
Speed range of 170 to 1200 RPM.
Easily accessible non contact switches, heavy-duty gear train and DC brushless motor provide exceptional durability.
Preventive maintenance alerts.
Bright LEDs provide visible status indicators.
Tact alert provides positive feedback to the operator without distracting from the task.
High-temperature motor protection.
Comfortable ergonomic grip.

ALL PRODUCTS IN THIS RANGE

Model	Torque Range (Nm)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Overall Length (mm)	Weight (kg)	Drive (size/style)
QE8AT065PA5S08	13.0 - 52.0	65	Trigger Start	Angle	1200	515	2.9	1/2 in. Square
QE8AT065PA6S08	13.0 - 52.0	65	Trigger Start	Angle	1200	520	2.9	1/2 in. Square
QE8AT070PA5S08	14.0 - 56.0	70	Trigger Start	Angle	1100	515	2.9	1/2 in. Square
QE8AT070PA6S08	14.0 - 56.0	70	Trigger Start	Angle	1100	520	2.9	1/2 in. Square
QE8AT090PA5S08	18.0 - 72.0	90	Trigger Start	Angle	850	515	2.9	1/2 in. Square
QE8AT090PA6S08	18.0 - 72.0	90	Trigger Start	Angle	850	520	2.9	1/2 in. Square
QE8AT115PA6S08	23.0 - 92.0	115	Trigger Start	Angle	660	515	2.9	1/2 in. Square
QE8AT150PA6S08	30.0 - 120.0	150	Trigger Start	Angle	510	520	2.9	1/2 in. Square
QE8AT225PA7S12	45.0 - 180.0	225	Trigger Start	Angle	310	560.5	4.1	3/4 in. Square
QE8AT400FA8S12	80.0 - 320.0	400	Trigger Start	Angle	170	637	6	3/4 in. Square

Technical Details

Manufacturer	Ingersoll Rand
Drive Size	1/2" , 3/4"
Cordless	No
Grip Type	Angle
Torque Range [Nm]	13 - 320 Nm
Drive Type	Square
Actuation/Throttle Type/Switch Type	Trigger
Built-In Light	Yes
Maximum Adjustable RPM	1200
Minimum Adjustable RPM	170
Reversible	Yes
Maximum Torque	320 Nm
Minimum Torque	13 Nm
Total Length	637 mm
Weight	6 kg
Communication	USB Cable
With Display	No
With Ergonomic Tightening System [ETS]	No
Data Recording	Yes
Tool Finder	No
