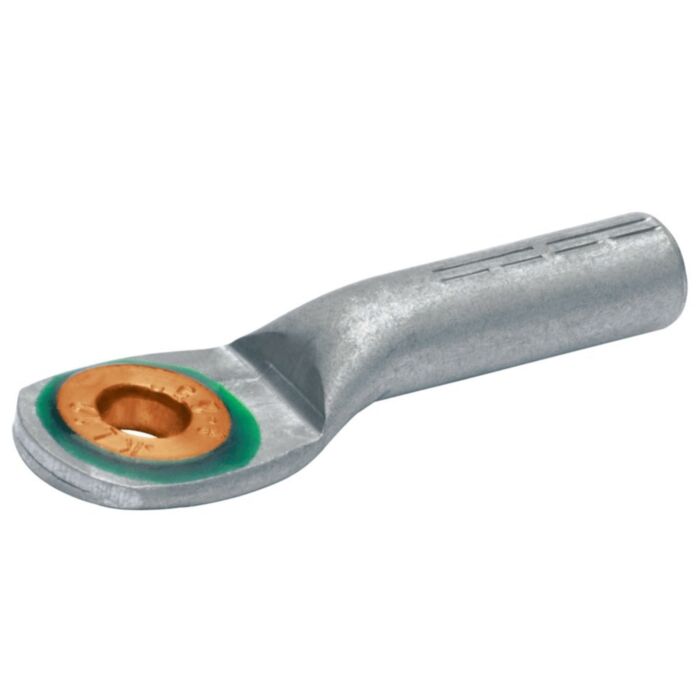

Klauke 311R20 (M20) 185mm²/240mm² Compression Cable Lug - Aluminium/Copper with Copper Eye

Klauke 311R20 (M20) 185mm²/240mm² Compression Cable Lug - Aluminium/Copper with Copper Eye

Manufacturer: KLAUKE

SKU : 311R20

For non-tension connections of aluminium conductors to DIN EN 60228 and aluminium cables to DIN EN 50182

Designed for connecting non-tensioned aluminium conductors to copper connections in humid environments

Tube dimension to specification DIN 46329

PRODUCT INFO
£10.64 £8.87
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £8.87 £10.64
50+ £7.54 £9.05
100+ £6.65 £7.98
1000+ £5.77 £6.92

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • For pre-rounded sector shaped conductors.
  • With code number for clear Klauke tool assignment.
  • Filled with contact grease for optimal transfer resistance.
  • Cu (copper) eyelet in screw-on area.
  • Easy to process due to crimp markings.
  • Designed for simple cable entry due to the precise design of the internal chamfer.
  • Made from E-aluminium and copper (EN13600) with a bright surface.

Cable Compatibility

Cable typeDescription
Single-strand compacted sector-shaped conductor 90° (Class 1 according to DIN EN 60228) made from aluminium or aluminium alloy.
Multi-strand compacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Copper stranded conductors (DIN 48201-1), aluminium or aluminium alloy conductors for overhead lines (DIN EN 50182).
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Single-strand compacted sector-shaped conductor 120° (Class 1 according to DIN EN 60228) made from aluminium or aluminium alloy.
Single-strand conductor (Class 1 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand uncompacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M20
Lug Material Copper/Aluminium
Lug Style Compression Cable Lug
Number of Crimps Aluminium [7mm] 6
Number of Crimps Aluminium [Wide] 3
b 46 mm
d1 18.5 mm
d2 21 mm
d4 28.5 mm
Nominal Cross-Section [re/se] 240 mm²
Nominal Cross-Section [rm/sm] 185 mm²
Total Length 106 mm
Weight Per 100 Pieces 15.5 kg
