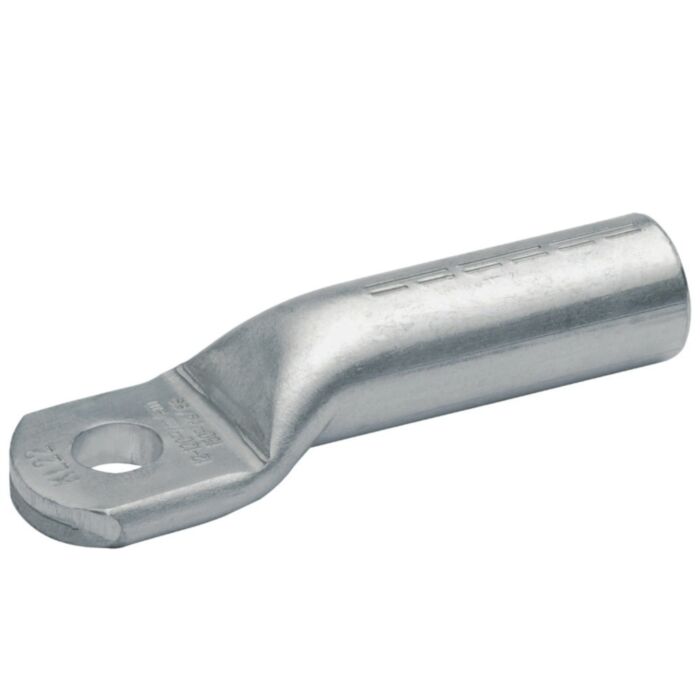

Klauke 211R20 (M20) 185mm²/240mm² Compression Cable Lug - Aluminium

Klauke 211R20 (M20) 185mm²/240mm² Compression Cable Lug - Aluminium

Manufacturer: KLAUKE

SKU: 211R20

Back order for delivery on 4th December 2026

For non-tension connections of aluminium conductors to DIN EN 60228 and aluminium cables to DIN EN 50182

185mm²/240mm² compression cable lug for pre-rounded sector shaped conductors

To DIN 46267, part 2

With code number for clear tool assignment

Filled with contact grease for optimum transfer resistance

Click here for product info
£3.49 £2.91
In stock
GBP

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £2.91 £3.49
25+ £2.82 £3.38
100+ £2.68 £3.22
1000+ £2.32 £2.78
Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Compression cable lug which is easy to process due to crimp markings.
  • Has a simple and safe connection due to the flat contact surfaces and internal chamfer.
  • Made from E-aluminium, which has a bright surface.
  • For use on medium voltage aluminium cable between 10kV - 30kV.

Additional Information

  • re = round single solid wire, rm = round multi-stranded, se = sector shaped single solid wire, sm = sector shaped multi-stranded, sector shaped conductors must be pre-rounded.
  • 16mm² - 400mm² IEC-tested.

Cable Compatibility

Cable typeDescription
Single-strand compacted sector-shaped conductor 90° (Class 1 according to DIN EN 60228) made from aluminium or aluminium alloy.
Multi-strand compacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand uncompacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Single-strand compacted sector-shaped conductor 120° (Class 1 according to DIN EN 60228) made from aluminium or aluminium alloy.
Single-strand conductor (Class 1 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Copper stranded conductors (DIN 48201-1), aluminium or aluminium alloy conductors for overhead lines (DIN EN 50182).

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M20
Lug Material Aluminium
Lug Style Compression Cable Lug
a [See Images] 65 mm
b [See Images] 40 mm
Maximum Rated Voltage 30 kV
Nominal Cross-Section [re/se] 240 mm²
Nominal Cross-Section [rm/sm] 185 mm²
Total Length 106 mm
Weight 0.131 kg
Weight Per 100 Pieces 13.1 kg
d1 [See Images] 18.5 mm
d2 [See Images] 21 mm
d4 [See Images] 28.5 mm
Packaged Weight 0.131 kg
