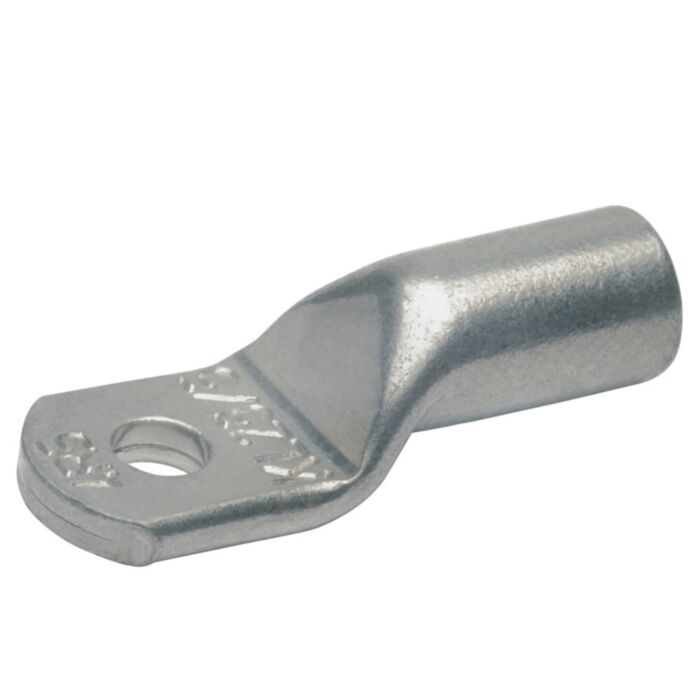

Klauke 14R12 (M12) 400mm² Tubular Cable Lug without Inspection Hole - Copper & Tin Plated

Klauke 14R12 (M12) 400mm² Tubular Cable Lug without Inspection Hole - Copper & Tin Plated

Manufacturer: KLAUKE

SKU: 14R12

Back order for delivery on 30th November 2026

Tubular cable lug for multi-stranded round conductors, e.g. to DIN EN 60228 Cl. 2

Made for pre-rounded multi-stranded sector shaped conductors

An ideal cable lug for control cabinet construction

Click here for product info
£26.33 £21.94
In stock
GBP

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £21.94 £26.33
10+ £19.75 £23.70
50+ £16.79 £20.15
100+ £14.80 £17.76
1000+ £12.84 £15.41
Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • This 400mm² tubular cable lug features an annealed material, which optimises material and crimping properties.
  • Designed to DIN EN 61373 class 1B (vibration-tested), making this lug ideal for railway applications, where products need to be able handle shock and vibration.
  • Made from copper (EN13600), which is tin plated to protect the lug against corrosion.

Cable Compatibility

Cable typeDescription
Multi-strand uncompacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M12
Lug Material Copper/Tin
Lug Style Tubular Cable Lug
a [See Images] 44 mm
b [See Images] 49 mm
Maximum Temperature 180 °C
Nominal Cross-Section 400 mm²
Total Length 90 mm
Weight 0.3241 kg
Weight Per 100 Pieces 32.41 kg
d1 [See Images] 27 mm
d2 [See Images] 13 mm
c1 [See Images] 24 mm
c2 [See Images] 24 mm
d4 [See Images] 34 mm
Packaged Weight 0.3241 kg
