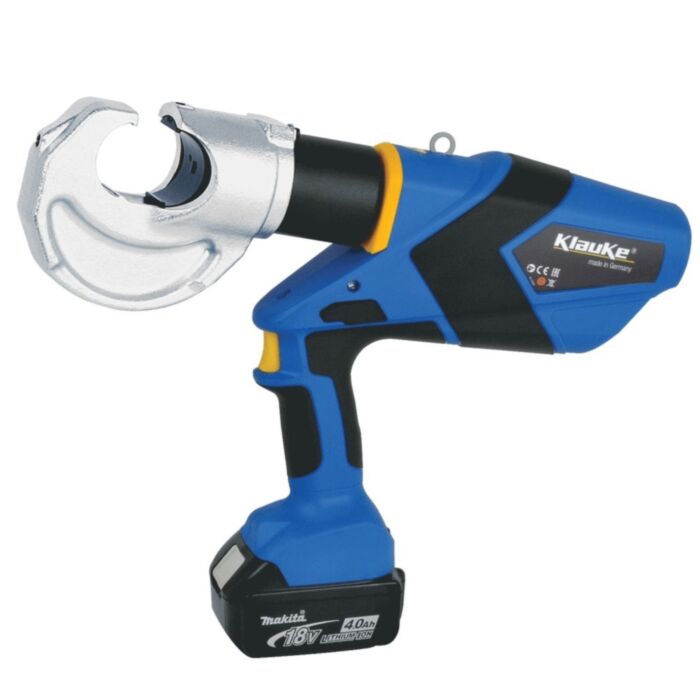

Klauke EK 120/32 CFM 16mm² - 400mm² Makita Battery Powered Hydraulic Crimping Tool - 120kN

Klauke EK 120/32 CFM 16mm² - 400mm² Makita Battery Powered Hydraulic Crimping Tool - 120kN

Manufacturer: KLAUKE

SKU : EK12032CFM

Hydraulic crimp tool with a very large crimping range from 16mm² up to 400mm²

Up to 60% fewer crimps thanks to wide crimping in comparison to 6 t tools

All tool data in view thanks to display and i-press® app

Click here for product info
1 question has been answered about this product
£3,702.00 £3,085.00
In stock
  • 1 In stock
  • Estimated UK Delivery Time: Next Day Delivery

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £3,085.00 £3,702.00
5+ £3,090.89 £3,709.07
10+ £2,996.27 £3,595.52
25+ £2,870.11 £3,444.13

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Powered by a Makita battery.
  • All data can be easily read via Bluetooth.
  • This crimp tool has an open head, which is rotatable.
  • Quality assurance via visual and audible signals in case of error.
  • Designed to be controlled by one-button for all tool functions, making this an easy to control crimp tool.
  • Effortless to use and work with due to a balanced centre of gravity, ensuring the operator can crimp for long periods of time.
  • LED light for enhanced work area illumination.
  • Two-stage hydraulic system with fast feed and power stroke.
  • Automatic retraction when operation is complete, as well as automatic retract stop (ARS) for positioning control in case of multiple crimps.
  • Always ready-to-use thanks to battery charge and service display.
  • Suitable for use on 13-series interchangeable crimping dies, which provide a wide crimping profile.
  • Pistol grip.

Technical Details

Manufacturer Klauke
Insulated [VDE] No
Hydraulic or Battery Powered Battery
Grip Type Pistol
Bench Mounted No
Head Design Open
Crimping Cycle 7 seconds to 8 seconds (depending on crimping cross-section)
Battery Capacity 4 Ah
Battery Voltage 18 V
Charging Time 36 Minutes
Crimping Range From 16 mm²
Crimping Range Up To 400 mm²
Maximum Crimp Force 120 kN
Maximum Operating Temperature 40 °C
Minimum Operating Temperature -10 °C
Opening Width 32 mm
Weight Including Battery 6.8 kg

Customer Questions & Answers

Customer Questions

Does this tool come with crimping dies?

There are no crimping dies included with this tool. They would need to be purchased seperately.
Did you find what you were looking for?

Set Includes

Product Voltage Weight
LGL1 230 V 1 kg
Part Number Description
RAL4018 V / 4.0 Ah, Li-Ion Makita battery
KK120NGHard plastic carrying case
