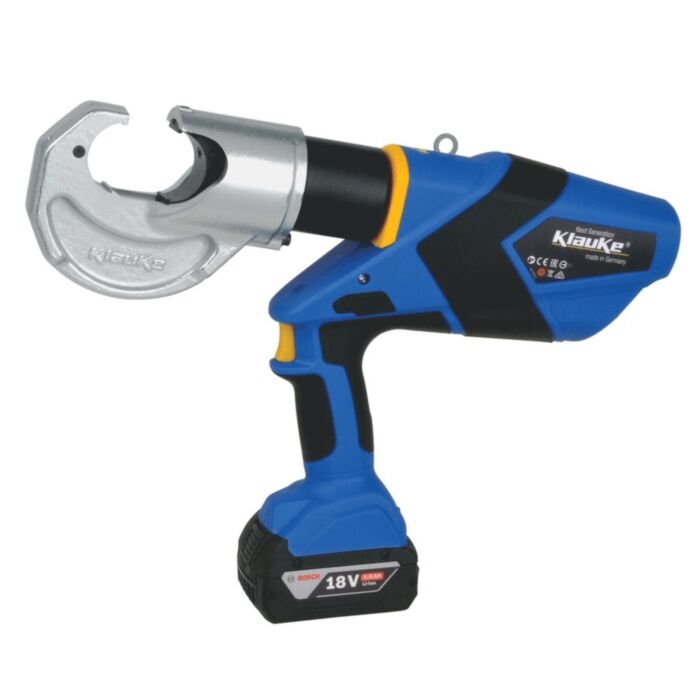

Klauke EK 120/32 CFB 16mm² - 400mm² Bosch Battery Powered Hydraulic Crimping Tool - 120kN

Klauke EK 120/32 CFB 16mm² - 400mm² Bosch Battery Powered Hydraulic Crimping Tool - 120kN

Manufacturer: KLAUKE

SKU : EK12032CFB

Hydraulic crimp tool with a very large crimping range from 16mm² up to 400mm²

Up to 60% fewer crimps thanks to wide crimping in comparison to 6 t tools

All tool data in view thanks to display and i-press® app

PRODUCT INFO
£3,777.72 £3,148.10
In stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Powered by a Bosch battery.
  • All data can be easily read via Bluetooth.
  • This crimp tool has an open head, which is rotatable.
  • Quality assurance via visual and audible signals in case of error.
  • Designed to be controlled by one-button for all tool functions, making this an easy to control crimp tool.
  • Effortless to use and work with due to a balanced centre of gravity, ensuring the operator can crimp for long periods of time.
  • LED light for enhanced work area illumination.
  • Two-stage hydraulic system with fast feed and power stroke.
  • Automatic retraction when operation is complete, as well as automatic retract stop (ARS) for positioning control in case of multiple crimps.
  • Always ready-to-use thanks to battery charge and service display.
  • Suitable for use on 13-series interchangeable crimping dies, which provide a wide crimping profile.
  • Pistol grip.

Technical Details

Insulated [VDE] No
Hydraulic or Battery Powered Battery
Grip Type Pistol
Bench Mounted No
Head Design Open
Crimping Cycle 7 seconds to 8 seconds (depending on crimping cross-section)
Battery Capacity 5 Ah
Battery Voltage 18 V
Charging Time 45 Minutes
Crimping Range From 16 mm²
Crimping Range Up To 400 mm²
Maximum Crimp Force 120 kN
Maximum Operating Temperature 40 °C
Minimum Operating Temperature -10 °C
Opening Width 32 mm
Weight Including Battery 6.8 kg
