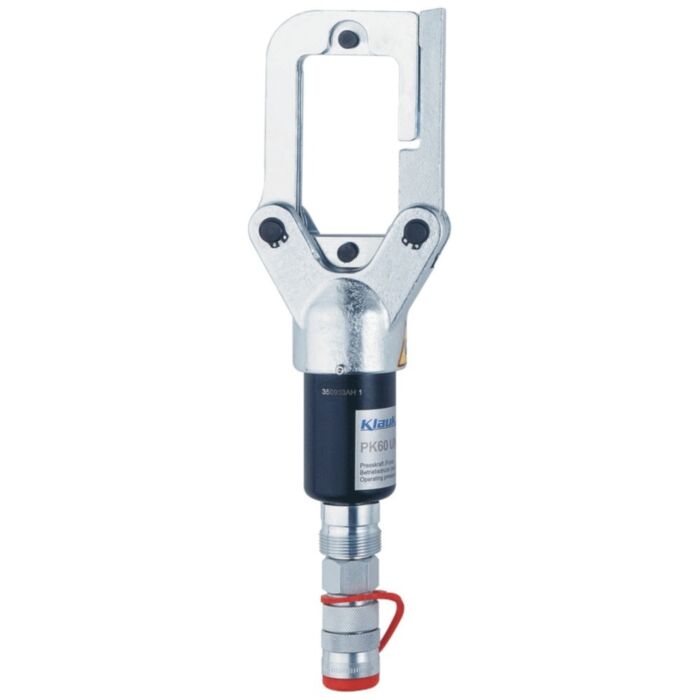

Klauke PK 60 UNV 150mm² Hydraulic Universal Head (Cutting, Crimping & Punching) - 60kN

Klauke PK 60 UNV 150mm² Hydraulic Universal Head (Cutting, Crimping & Punching) - 60kN

Manufacturer: KLAUKE

SKU : PK60UNV

EAN13 : 4012078390309

One head for crimping, cutting and punching

Ideal in the assembly field where all common jobs can be carried out using one tool

Connect to a hydraulic pump with 700 bar operating pressure for best possible crimping, cutting and punching results

Click here for product info
1 question has been answered about this product
£1,385.94 £1,154.95
In stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Universal head with quick coupling and 360° rotation when not pressurised, flip top style.
  • Various cutting inserts for aluminium and copper conductors with and without armouring, as well as aluminium/steel-cables (ACSR).
  • Fits dies to punch DIN rails.
  • Adapter for crimping dies of the Klauke 5, 18 and 22-series.

Technical Details

Manufacturer Klauke
Insulated [VDE] No
Hydraulic or Battery Powered Hydraulic
Bench Mounted No
Head Design Closed
Crimping Cycle 3 seconds to 5 sdeconds (depending on crimping cross-section)
Punching Capacity Up to 64mm diameter round, up to 92mm x 92mm square
Crimping Range From 150 mm²
Crimping Range Up To 150 mm²
Maximum Crimp Force 60 kN
Maximum Cutting Capacity 40 mm
Maximum Operating Pressure 700 mbar
Opening Width 42 mm
Total Length 350 mm
Weight 2.4 kg

Customer Questions & Answers

Customer Questions

Can I use this tool on non-Klauke cable lugs?

Yes, although Klauke will only underwrite connections made using their own cable lugs as a system. This is because they are tested as a system to the IEC 61238 standard, which involves lifecycle heat cycling, tensile testing (pull-out) and short circuit testing.
