Klauke R22SET 6mm² - 300mm² 13 Piece Crimping Die Set

Klauke R22SET 6mm² - 300mm² 13 Piece Crimping Die Set

Manufacturer: KLAUKE


EAN13 : 4012078596190

13 piece crimping die set which ranges between cross-sections 6mm² - 300mm²

£865.50 £721.25
In stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Crimp die set for use on standard copper tubular cable lugs and connectors, as well as tubular cable lugs for switchgear connections.
  • Dies crimp with a hexagonal profile.

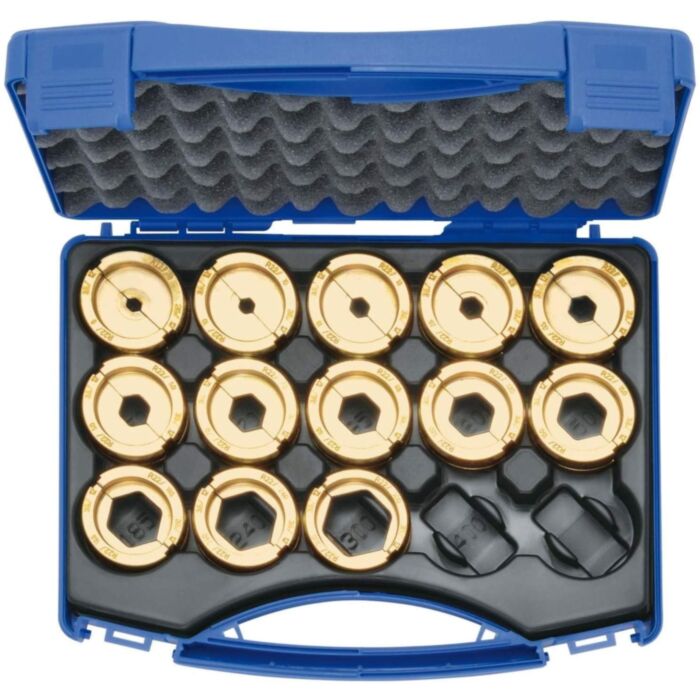

  • All 13 dies in the set are stored in a plastic case, which is provided.
  • The dies in this set can be used with the following Klauke crimp tools -

Technical Details

Crimp Profile Hexagonal
Crimp Die Set Yes
Cross-Section From 6 mm²
Cross-Section To 300 mm²

Customer Questions & Answers

Customer Questions
Can you please tell me what the difference is between the R22 & D22 Klauke die sets are? We currently have the D22 set and it doesn't seem to crimp the cable correctly in relation to the die size.
The difference between the D22 range and the R22 range is that the D22 is for crimping cable lugs to DIN 46235 and connectors to DIN 46267 part 1, whereas the R22 doesn't crimp to a DIN standard.
Did you find what you were looking for?

Set Includes

Product Crimp Profile Crimp Width Nominal Cross-Section
R2295 Hexagonal 5 mm 95 mm²
R22300 Hexagonal 5 mm 300 mm²
R22185 Hexagonal 5 mm 185 mm²
R22150 Hexagonal 5 mm 150 mm²
R2250 Hexagonal 5 mm 50 mm²
R22120 Hexagonal 5 mm 120 mm²
R2270 Hexagonal 5 mm 70 mm²
R2216 Hexagonal 5 mm 16 mm²
R2210 Hexagonal 5 mm 10 mm²
R226 Hexagonal 5 mm 6 mm²
R2225 Hexagonal 5 mm 25 mm²
R22240 Hexagonal 5 mm 240 mm²
R2235 Hexagonal 5 mm 35 mm²
