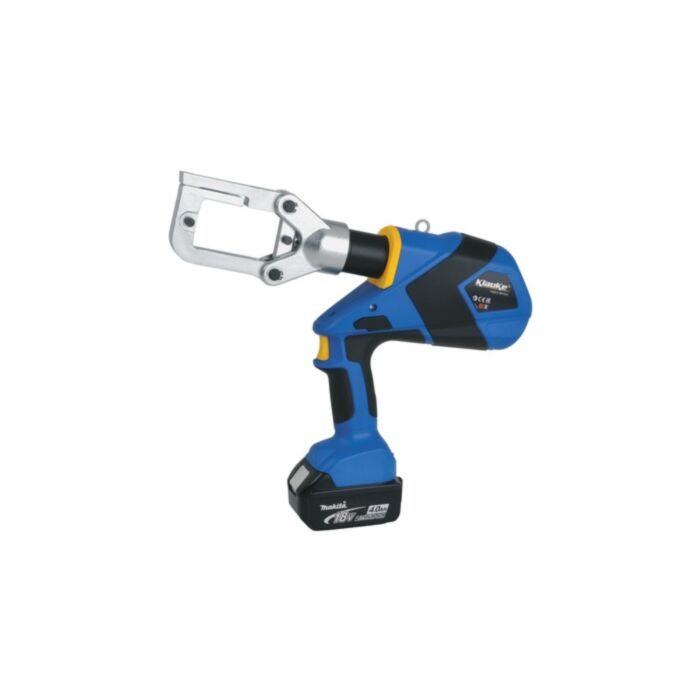

Klauke EK 60 UNV CFB 6mm² - 300mm² Bosch Battery-Powered Hydraulic Universal Tool - 60kN

Klauke EK 60 UNV CFB 6mm² - 300mm² Bosch Battery-Powered Hydraulic Universal Tool - 60kN

Manufacturer: KLAUKE

SKU: EK60UNVCFB

Back order for delivery on 28th November 2026

One tool for crimping, cutting and punching

Fast operations due to two-stage hydraulics

All tool data in view thanks to display and i-press® app

Perfect for work in confined space conditions due to its slim design

Click here for product info
1 question has been answered about this product
£3,908.42 £3,257.02
In stock
GBP

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £3,257.02 £3,908.42
10+ £3,187.05 £3,824.46
25+ £3,051.68 £3,662.02
Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Bosch battery system.
  • All data can be easily read via Bluetooth.
  • This universal head has a flip top style, which is rotatable.
  • One-button controls all the tool functions, making it simple and safe to use and its balanced centre of gravity enables effortless use for long periods of time.
  • Two-stage hydraulic system with fast feed and power stroke LED light on the tool for work area illumination.
  • Features an automatic retraction after operation completed (crimping or cutting), for safety and efficiency.
  • Always ready-to-use thanks to battery charge and service display.
  • Pistol style grip.

Technical Details

Manufacturer Klauke
Insulated [VDE] No
Hydraulic or Battery Powered Battery
Grip Type Pistol
Bench Mounted No
Crimp Profile Interchangeable Dies
Head Design Closed
Crimping Cycle 7 seconds to 9 seconds (depending on crimping cross-section)
Punching Capacity Up to 64mm diameter for round; Up to 92mm x 92mm for square
Battery Capacity 5 Ah
Battery Voltage 18 V
Charging Time 45 Minutes
Crimping Range From 6 mm²
Crimping Range Up To 300 mm²
Maximum Crimp Force 60 kN
Maximum Cutting Capacity 40 mm
Maximum Operating Temperature 40 °C
Minimum Operating Temperature -10 °C
Opening Width 42 mm
Weight 11200 g
Weight Including Battery 4.8 kg
Is Preset No
Packaged Weight 11200 g

Customer Reviews

Customer Questions & Answers

Customer Questions

How will I know when a service is due?

All Klauke tools have a red LED which will indicate when a service is approaching. This is either at 10,000 operations or every 3 years. This tool also has a screen at the base of the handle which shows you how many crimping operations the tool has completed, and how many more operations are available. The tool will continue operating, even when the service interval is reached, but the red LED will continue to indicate that a service is due.

Did you find what you were looking for?

Set Includes

Product Battery Capacity [Ah] Battery Capacity [Wh] Charging Time Voltage Weight
RALB2EU 5 Ah 90 Wh 45 Minutes 18 V 0.65 kg
UA22 - - - - 310 g
LGLB1EU - - - 18 V 0.65 kg
Part Number Description
KK120UNVNGHard plastic carrying case
