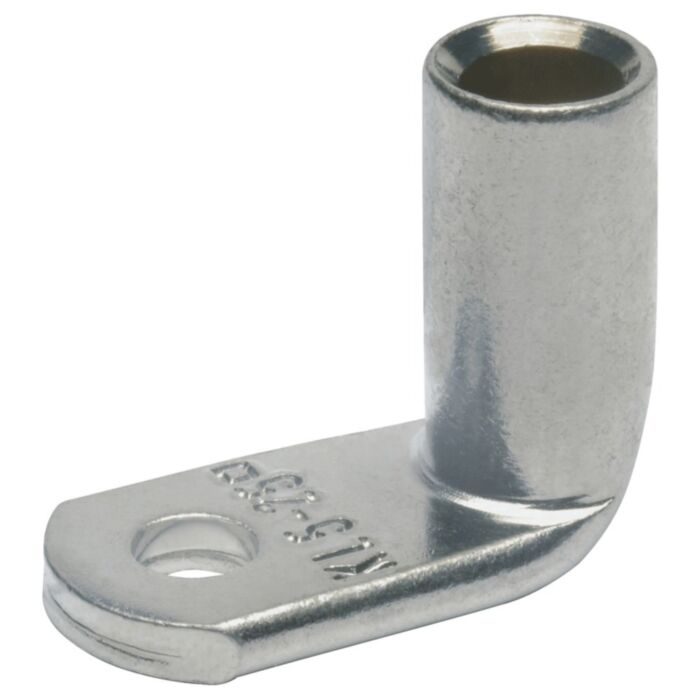

Klauke 46R10 (M10) 50mm² 90° Angled Tubular Cable Lug - Copper & Tin Plated

Klauke 46R10 (M10) 50mm² 90° Angled Tubular Cable Lug - Copper & Tin Plated

Manufacturer: KLAUKE

SKU : 46R10

90° angled (L-shaped) tubular cable lug for multi-stranded round conductors, e.g. to DIN EN 60228 Cl. 2

Designed for pre-rounded multi-stranded sector shaped conductors

Has a flat contact surface created by special angle pressing technology

PRODUCT INFO
£2.62 £2.18
In stock
  • 45 In stock
  • Can dispatch tomorrow for next day delivery

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £2.18 £2.62
50+ £1.74 £2.09
100+ £1.52 £1.82
500+ £1.31 £1.57
1000+ £1.26 £1.51

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • This 50mm² 90° angled tubular cable lug has an annealed material, which optimises material and crimping properties.
  • Has a simple and safe connection, due to the flat contact surfaces and internal chamfer.
  • Reliable assignment due to item designation on the cable lug.
  • Made from copper (EN13600) and is tin-plated to protect against corrosion.

Cable Compatibility

Cable typeDescription
Multi-strand uncompacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M10
Lug Material Copper/Tin
Lug Style 90° Angled [L-Shaped] Tubular Cable Lug
b 20 mm
c1 12 mm
d1 10 mm
d2 10.5 mm
d4 14 mm
l3 9 mm
Nominal Cross-Section 50 mm²
Weight Per 100 Pieces 3.47 kg

Customer Questions & Answers

Customer Questions

What are wire connectors used for?

Wire connectors are used to join two or more electrical wires securely, ensuring a safe and reliable connection. They are essential in electrical installations to prevent short circuits and ensure proper current flow.

What types of wire connectors are available?

Common types include twist-on wire connectors, push-in wire connectors, crimp connectors and solderless terminals. Each type is suited for different applications and wire gauges.

How do I choose the right wire connector?

Select a wire connector based on the wire gauge, the number of wires to be connected and the specific application. Ensure the connector is rated for the voltage and current requirements of your project.

Are wire connectors reusable?

Some wire connectors, like twist-on connectors, can be reused if they are in good condition. However, others, such as crimp connectors are typically intended for single use to ensure a secure connection.

What safety precautions should be taken when using wire connectors?

Always turn off the power before working with electrical wiring. Use the correct size and type of connector for your wire and follow the manufacturer's instructions to ensure a secure and safe connection.
