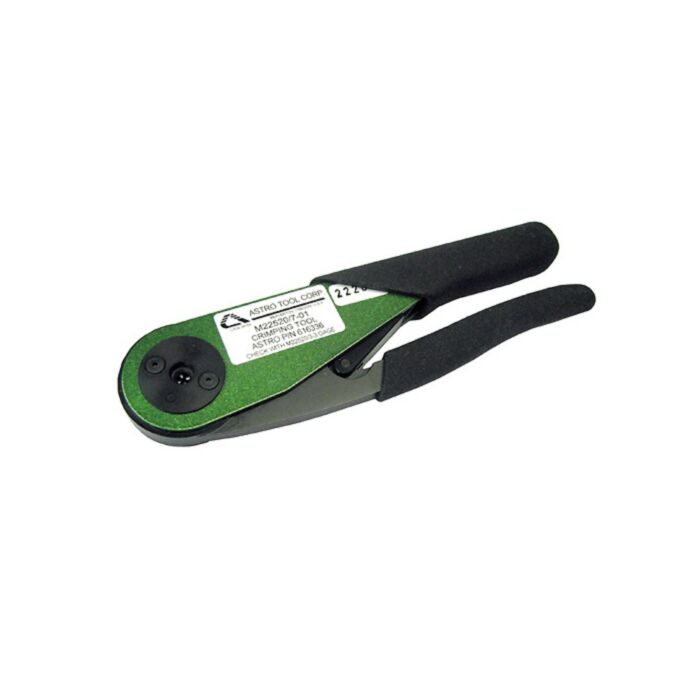

Astro 616336 Intermediate Step Adjustable Crimp Tool - Mil-Spec M22520/7-01

Astro 616336 Intermediate Step Adjustable Crimp Tool - Mil-Spec M22520/7-01

Manufacturer: ASTRO TOOL CORP.

SKU : 616336

Can be used to crimp circular male and female connector contacts

This tool is the equivalent to the DMC MH860

Qualified to MIL-DTL-225207

£510.23 £425.19
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £425.19 £510.23
10+ £403.93 £484.72
25+ £382.67 £459.20

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • This hand held crimp tool can be used to crimp circular male and female connector contacts.
  • It has a cycle controlled precision ratchet, which is designed to prevent the tool being opened before the crimping action is completed. This feature ensures accurate and consistently high-quality crimps are achieved each time, whilst preventing partial crimps.
  • An 8-indent selector on the tool enables the correct crimp setting to be selected and a positioner guide, locks the positioner firmly in place.
  • It is designed for use with wire barrel sizes 16 - 22.
  • Minimum maintenance required.
  • Qualified to MIL-DTL-22520/7.

Technical Details

Includes Connectors No
Use with Positioner or Turret Head Yes
