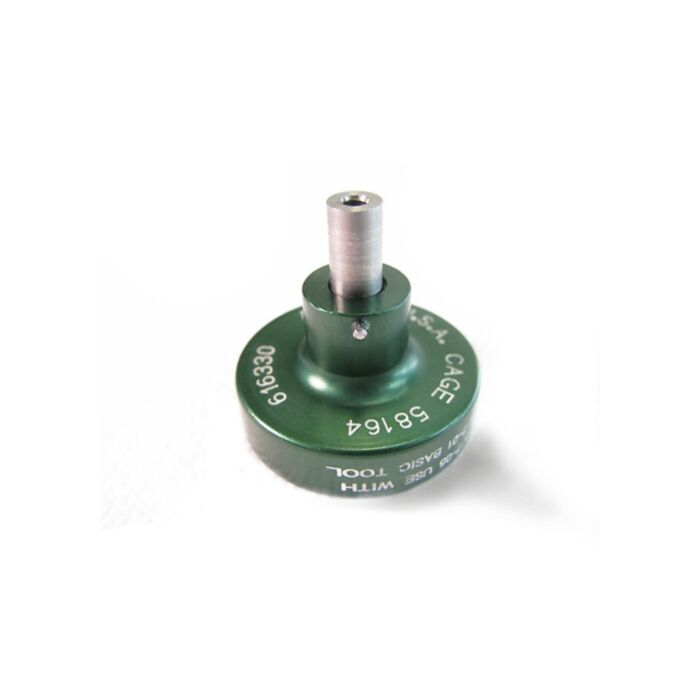

Astro 616330 Positioner - Mil-Spec M22520/7-05

Astro 616330 Positioner - Mil-Spec M22520/7-05

Manufacturer: ASTRO TOOL CORP.

SKU : 616330

A military specification M225207-05 positioner for use with the M225207-01 crimp tool

Equivalent of the DMC 86-4 positioner

£79.82 £66.52
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £66.52 £79.82
10+ £63.19 £75.83
25+ £59.87 £71.84

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • A military specification M22520/7-05 bayonet positioner for use with the M22520/7-01 crimp tool.
  • Crimp tool frame should be on size 22 socket (female) contacts installed in MIL-C-38999 rear release circular connectors.
  • This positioner should be used with contact numbers -
    • M39029/56-348 to -350
    • M39029/88-482 to -485
  • This positioner is the Astro equivalent of the DMC 86-4 positioner.

Technical Details

From American Wire Gauge (AWG) Range 22
Positioner or Turret Positioner
Up To American Wire Gauge (AWG) Range 28
Weight 0.03 lb

Customer Questions & Answers

Customer Questions
No Questions
Did you find what you were looking for?

Set Includes

Product From American Wire Gauge (AWG) Range MIL-SPEC Positioner or Turret Up To American Wire Gauge (AWG) Range Weight
616328 16 Yes Positioner 20 0.03 lb
