Wire Connectors

Wire connectors are used to either join two or more electrical wires securely, ensuring a safe and reliable connection, or to connect wires to a component, such as a battery.

Wire connectors are important for electrical installations because they prevent short circuits and also ensure proper electrical current flow.

No they are not. Different wire connectors have different purposes, are used with different wire gauges and can handle different levels of electrical load. Some wire connectors provide a permanent electrical bond (such as a cable lug), whereas other wire connectors can be easily disconnected (such as a lever wire connector), and some can be used in all enviroments, whereas other wire connectors can only be used in dry environments, such as indoors.

Wire connectors also form bonds with wire in different ways. For example, a cable lug is used with a crimp tool, which deforms the cable lug onto the cable, so that they form a permanent bond and the lug can then connect to an electrical component, such as an inverter. However, not all wire connectors need a crimp tool. A wire nut is a hand operated wire connector that can have two different wires twisted into it, and the coil in the wire nut grips the wires to provide connectivity between them.

Select a wire connector based on the wire gauge, the number of wires to be connected and the specific application (such as indoors/outdoors, solid/stranded wire, or connecting wires together or connecting them to a component). The operator should always ensure the wire connector is rated for the voltage and current requirements of the project, as well as any compliance codes or electrical specifications that may need to be met.

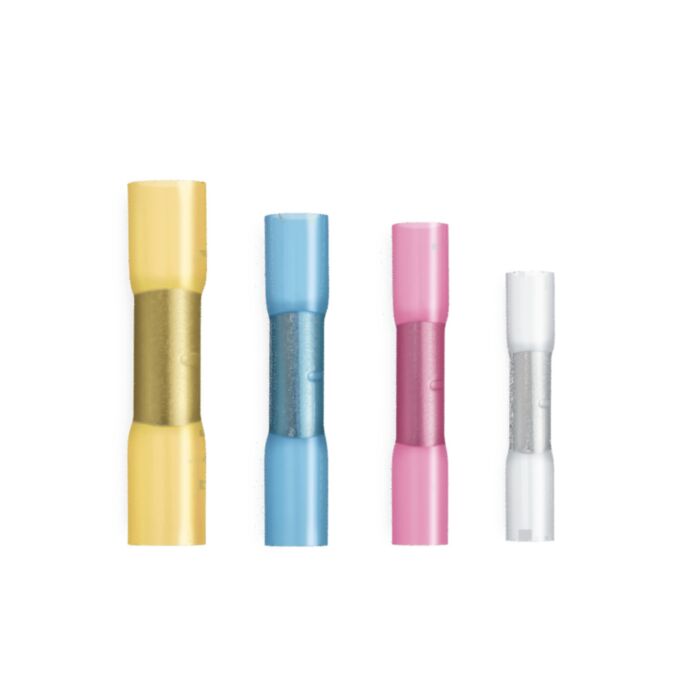

Some wire connectors, like twist-on connectors, can be reused if they are in good condition. However, others, such as cable lugs or butt connectors are crimped by a crimping tool to ensure a secure connection, and a crimped connection is a permanent connection (also known as a 'cold-weld'), so if the operator manages to part the wire from the lug, the lug will be damaged and not reusable.

Always turn off the power at the breaker or fuse box before working with electrical wiring. Use the correct size and type of connector for your wire and follow the manufacturer's instructions to ensure a secure and safe connection.

Smaller wires do not have the same capacity for current flow that bigger wires do, although it is possible to mix wire gauges in one connector and this could be executed for a voltage drop over a long run.

Using smaller wire gauges with larger gauges can cause overheating and general best practice is to ensure sizes are consistent, but some wire connectors can accomodate this, as long as they are specifically rated for that combination, such as certain wire nuts, lever and push-in connectors.

Solid wire is often found around properties and is one piece of thick conductor that is cheaper than stranded wire, less flexible and can be terminated with screw terminals.

Stranded wire consists of many fine strands twisted together into one conductor, creating a more flexible wire, which usually has to be terminated with a crimp. Stranded wires can handle vibration better than solid wires and are usually found in cars, planes and anything else which may cause them to move regularly through vibration.

Yes some connectors can handle vibration, but not all can.

Connectors which are crimped, such as cable lugs and butt connectors can handle vibration because when they are crimped to the wire, the crimp creates a permanent mechanical and electrical bond.

Avoid wire-nuts and push-in connectors if your connection is likely to have vibration, as the wire connection with these connectors is not permanent and the vibration can cause the wires to back-off over time.

If a wire connector is getting hot then it becomes a serious fire hazard and needs unplugging immediately, or the electric supply to it needs shutting off.

Wire connectors can get hot for several reasons, such as using a wrong size conector, a loose connection or corrosion causing a high electrical resistance, as well as overloading the circuit or executing a bad crimp.

The amount of insulation that should be stripped before crimping a connector onto the end of the wire, depends on the type of connector that is being used, as well as its size. The general rule is to strip only enough insulation so that the bare conductor fits fully inside the terminal barrel, without leaving any exposed wire outside of it.

If too much insulation is stripped and it sits outside of the barrel, then it increases the risk of a short circuit, whereas if too little is stripped, the insulation may get caught inside the crimp area, which could prevent a secure electrical connection.

The operator should always follow the manufacturer's guidelines on how much insulation should be stripped from the wire being worked on, to ensure that a strong mechanical grip can be created when it is crimped, which in turn allows for a low-resistance electrical connection.
