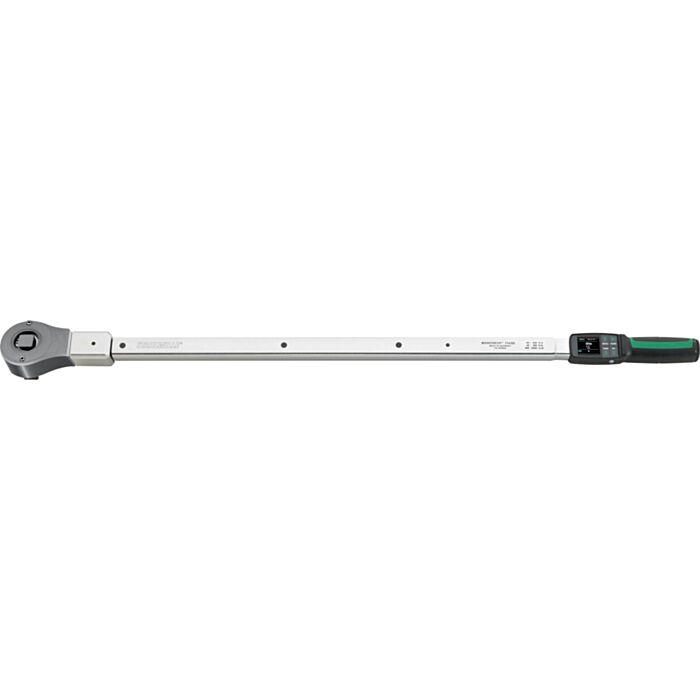

Stahlwille 96501065 3/4" MANOSKOP Torque Wrench 65Nm - 650Nm

Stahlwille 96501065 3/4" MANOSKOP Torque Wrench 65Nm - 650Nm

Manufacturer: STAHLWILLE

SKU : 96501065

EAN13 : 4018754212781

Torque wrench with a torque range of 65Nm - 650Nm

Has a 3/4" reversible ratchet

Measures torque in Nm, ft.lb & in.lb

Click here for product info
£2,013.13 £1,677.61
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £1,677.61 £2,013.13
10+ £1,517.84 £1,821.41

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Torque wrench with a torque range of 65Nm - 650Nm and a 22mm x 28mm mount insert.
  • Has four measuring modes, which are -
    • Torque
    • Angle
    • Torque backed up by angle
    • Angle backed up by torque
  • Features a high-definition colour display, which can be quickly set with a freely configurable menu structure and additional side-mounted indicator lamps.
  • The keypad lock prevents inadvertent changes.
  • Three function modes -
    • Cut-out
    • Peak hold (which indicates mode with peak value)
    • Track (which indicates mode with current value)
  • QuickRelease safety lock change system for insert tools.
  • This torque wrench has data storage for around 2500 tightening jobs and there is a micro USB interface.
  • Bayonet connection for battery compartment.
  • Up to 200 joints can be programmed in up to 25 preset sequences and different tolerances can be set for each joint.
  • There is acoustic and visual assessment of the joint being worked on.
  • Overload protection by means of acoustic and visual signals and a fail-safe system (clockwise).
  • Provides automatic notification of the next calibration date, either by the number of joints or the time interval between calibrations.
  • This torque wrench measures torque in units of Nm, ft.lb and in.lb.
  • Tightening torque is automatically corrected if a deviating extension is entered.
  • The tool is available for use immediately after release.
  • Torque wrench operates in a clockwise and anti-clockwise direction, although it may be necessary to refit the insert tool at 180° for anticlockwise tightening in the cut-out mode.
  • Has a tactile and acoustic trigger signal.
  • Torque and angle are simultaneously visible.
  • The handle provides comfort and stability due to it ergonomic design, which is resistant to oils, grease, fuels, brake fluid and skydrol.
  • Has three certificates (torque indicating/clicking in accordance with DIN EN ISO 6789-2:2017, angle).
  • Supplied with SENSOMASTER 4 software, USB cable, 4 AAA/LR03 micro-batteries. (1.5 V. AAA, 1.2 V, micro NiMH rechargeable batteries can be used).
  • Display resolution, angle 0.1°.

Technical Details

Manufacturer Stahlwille
Drive Size 3/4"
Accuracy +/- 2%
Mount Size 22mm x 28mm
Maximum Torque 650 Nm
Minimum Torque 65 Nm
Total Length 980 mm
Weight 5137 g
