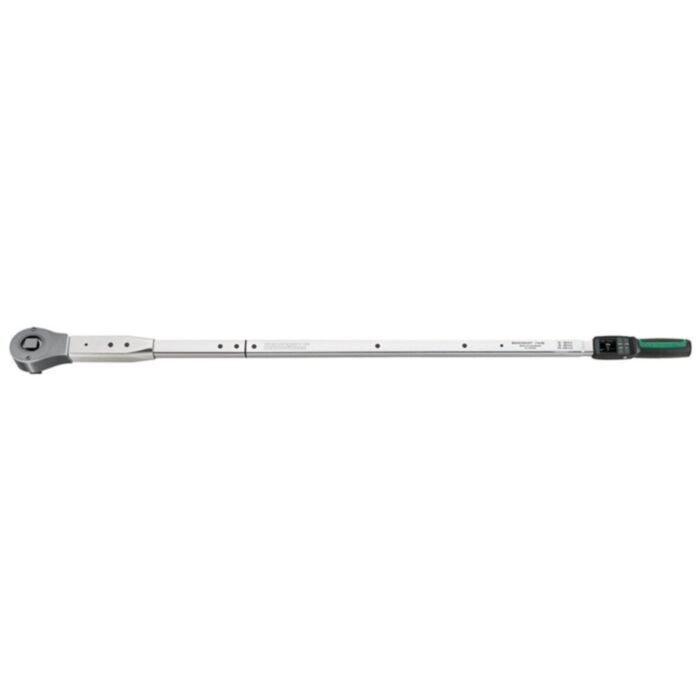

Stahlwille 96501100 3/4" Torque Wrench 100Nm - 1000Nm

Stahlwille 96501100 3/4" Torque Wrench 100Nm - 1000Nm

Manufacturer: STAHLWILLE

SKU : 96501100

EAN13 : 4018754212804

Torque wrench with a torque range of 100Nm - 1000Nm

Has a 3/4" square drive and 22mm x 28mm insert mount

PRODUCT INFO
£2,546.82 £2,122.35
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £2,122.35 £2,546.82
10+ £1,920.21 £2,304.25

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Torque wrench with a 3/4" square drive and a torque range of 100Nm - 100Nm, which measures torque in Nm, ft.lb and in.lb.
  • Has four measuring modes (torque, angle, torque backed up by angle, angle backed up by torque).
  • Features a high-definition colour display, with a freely configurable menu structure and an additional side-mounted indicator lamp.
  • This torque wrench has three function modes -
    • Cut out
    • Peak hold (which indicates mode and peak value)
    • Track (which indicates modes with current value)
  • Has a micro USB interface and can store data for approximately 2500 tightening jobs.
  • Bayonet connection for battery compartment.
  • QuickRelease safety lock change system for insert tools.
  • As many as 200 joints can be programmed in up to 25 preset sequences and different tolerance limits can be set for each joint.
  • There is acoustic and visual assessment of the joint with overload protection by means of acoustic and visual signals and a fail-safe system (clockwise).
  • The keypad enables rapid, accurate setting and can be locked to prevent inadvertent changes.
  • Provides automatic notification of the next calibration date, either by the number of joints or the time interval.
  • Tightening torque is automatically corrected if a deviating extension is entered.
  • It is immediately reusable after release.
  • Provides torque in both a clockwise and anti-clockwise direction, although the insert tool may need rotating 180° for anticlockwise tightening in the cut-out mode.
  • Has a tactile and acoustic trigger signal.
  • Torque and angle are simultaneously visible.
  • Safe and comfortable handling due to ergonomically designed handle, which is resistant to oils, grease, fuels, brake fluid and skydrol.
  • Three certificates (torque indicating/clicking in accordance with DIN EN ISO 6789-2:2017, angle).
  • Supplied with SENSOMASTER 4 software, USB cable, 4 AAA/LR03 micro-batteries (1.5 V. AAA, 1.2 V, micro NiMH rechargeable batteries can be used).
  • Display resolution, angle 0.1°
  • Display deviation value, angle ±1%, ±1 digit.

Technical Details

Drive Size 3/4"
Accuracy +/- 2%
Mount Size 22mm x 28mm
Maximum Torque 1000 Nm
Minimum Torque 100 Nm
Total Length 1438 mm
Weight 6905 g
