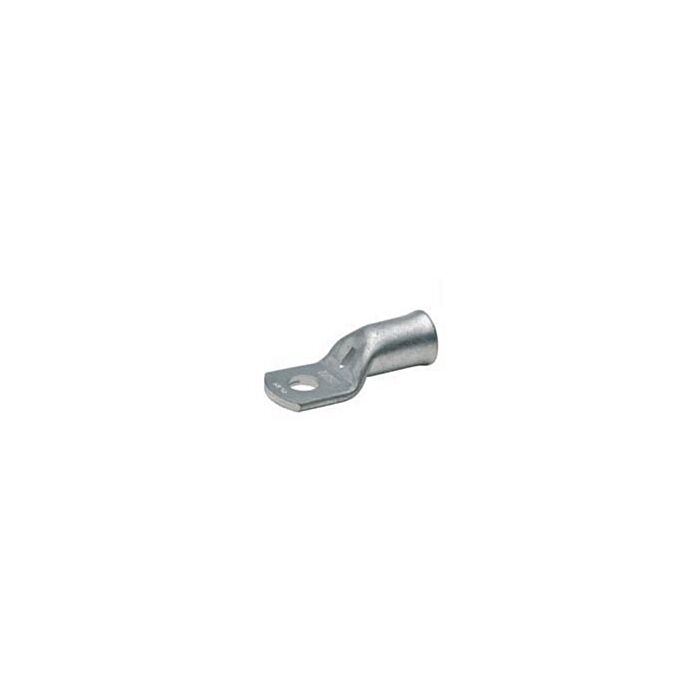

Klauke L506FMS (M6) 50mm² Compression Cable Lug - Copper & Tin Plated

Klauke L506FMS (M6) 50mm² Compression Cable Lug - Copper & Tin Plated

Manufacturer: KLAUKE

SKU: L506FMS

In Stock: 303 available

Tubular cable lug for stranded connectors, e.g. VDE 0295 Class 2

For pre-rounded sector shaped conductors

Internal chamfered barrel for easy cable insertion

Click here for product info
£1.93 £1.61
In stock
GBP

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £1.61 £1.93
50+ £0.97 £1.16
100+ £0.75 £0.90
500+ £0.65 £0.77
1000+ £0.62 £0.75
Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • This L-Series 50mm² tubular cable lug is for stranded connectors, e.g. VDE 0295 Class 2.
  • For pre-rounded sector shaped conductors.
  • Internal chamfered barrel for easy cable insertion.
  • Made from copper according to EN 13600, which is tin plated.
  • Annealed to optimise crimping properties.

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M6
Lug Material Copper/Tin
Lug Style Compression Cable Lug
a [See Images] 18 mm
b [See Images] 18 mm
Maximum Temperature 180 °C
Nominal Cross-Section 50 mm²
Total Length 36 mm
Weight 0.0184 kg
Weight Per 100 Pieces 1.84 kg
d1 [See Images] 9.5 mm
d2 [See Images] 6.5 mm
c1 [See Images] 7.5 mm
c2 [See Images] 7.5 mm
d4 [See Images] 12 mm
Packaged Weight 0.0184 kg
