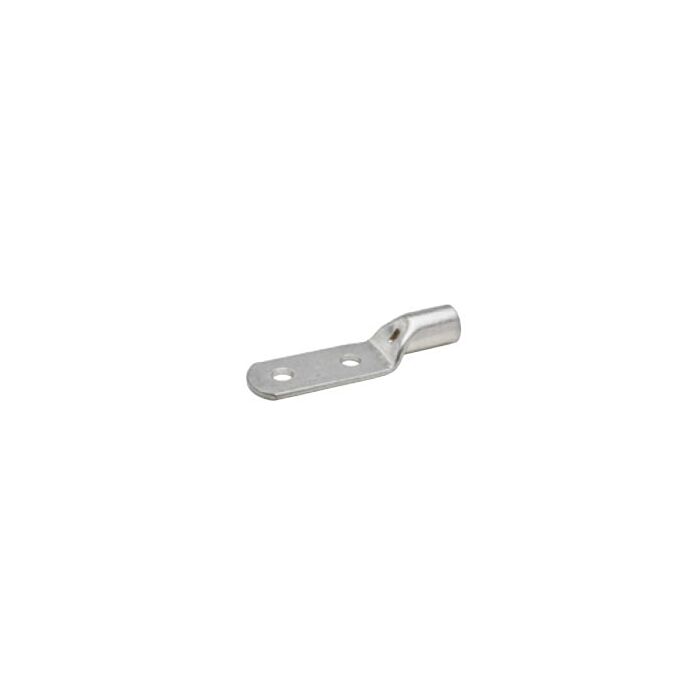

Klauke L300BO212445MS (M12) 300mm² Tubular Cable Lug with 2 Holes - Copper, which is Tin Plated

New

Klauke L300BO212445MS (M12) 300mm² Tubular Cable Lug with 2 Holes - Copper, which is Tin Plated

Manufacturer: KLAUKE

SKU: L300BO212445MS

300mm² tubular cable lug with two holes that is designed for use with fine stranded cables

Has an enlarged internal flare to make cable insertion quicker and easier

Made from copper (EN13600), which is tin-plated to protect against corrosion

Has an inspection hole to check conductor is fully inserted

44.5mm spacing between hole centres

Click here for product info
£20.44 £17.03
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £17.03 £20.44
50+ £14.47 £17.37
100+ £12.77 £15.32
1000+ £11.07 £13.28

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • 300mm² tubular cable lug with two holes that is designed for use with fine stranded cables.
  • Has an enlarged internal flare to make cable insertion quicker and easier and also provides a neater finish after crimping, with no raised diameter on the flared section.
  • Creates a simple and safe connection due to flat contact surfaces and an internal chamfer.
  • Made from copper (EN13600), which is tin-plated to protect against corrosion.
  • For use on -
    • Multi-stranded round conductors, e.g. to EN 60228 Cl. 2.
    • Pre-rounded multi-stranded sector shaped conductors.
    • When used in combination with EKM 60 ID this lug is suitable for fine-stranded conductors.
  • Has an inspection hole to check conductor is fully inserted.
  • 44.5mm spacing between hole centres.

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M12
Lug Material Copper/Tin
Lug Style Tubular Cable Lug with 2 Holes
a [See Images] 38.5 mm
b [See Images] 43 mm
Nominal Cross-Section 300 mm²
Total Length 87 mm
Weight Per 100 Pieces 33.71 kg
d1 [See Images] 23.5 mm
d2 [See Images] 13 mm
c1 [See Images] 24 mm
c2 [See Images] 24 mm
d4 [See Images] 29.5 mm
l2 [See Images] 44.5 mm
