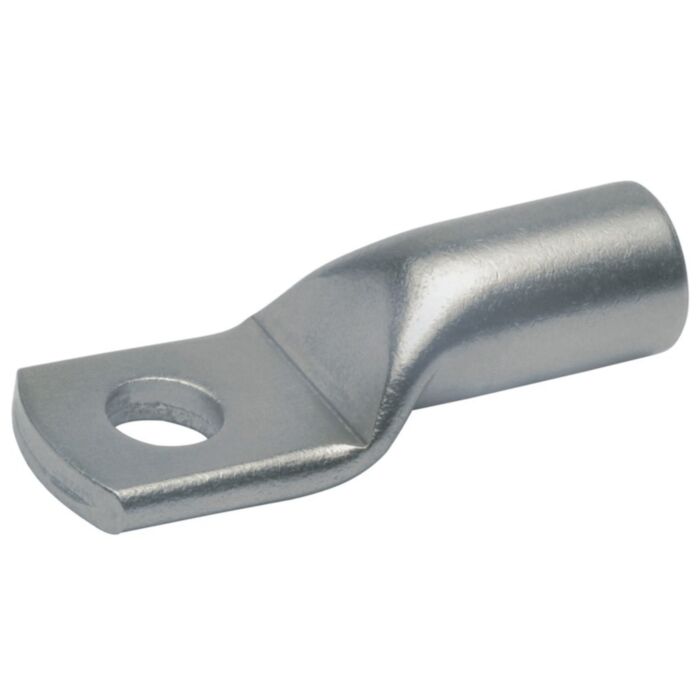

Klauke 83V8 (M8) 16mm² Tubular Cable Lug - Stainless Steel

Klauke 83V8 (M8) 16mm² Tubular Cable Lug - Stainless Steel

Manufacturer: KLAUKE

SKU : 83V8

Tubular cable lug for multi and fine stranded round conductors, e.g. according to DIN EN 60228 Cl. 2 and 5

Made for pre-rounded multi-stranded sector shaped conductors

Ideal for use in environments where rust or corrosion could happen, as this lug is made from stainless steel

Heat resistant up to 400°C

PRODUCT INFO
£4.84 £4.03
In stock
  • 1 In stock
  • Estimated UK Delivery Time: Next Day Delivery

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £4.03 £4.84
50+ £3.23 £3.88
100+ £2.82 £3.38
500+ £2.42 £2.90
1000+ £2.34 £2.81

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • 16mm² cable lug, which has a simple and safe connection due to the flat contact surfaces and internal chamfer.
  • Made from V2A (X5CrNi18-10), which is an austenitic (non-magnetic) stainless steel, that is highly resistant to corrosion.

Cable Compatibility

Cable typeDescription
Multi-strand compacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand uncompacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Fine-strand conductor (Class 5 according to DIN EN 60228) made from bright finish or metal-encased annealed copper.

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M8
Lug Material Stainless Steel
Lug Style Tubular Cable Lug
a [See Images] 13 mm
b [See Images] 15 mm
Nominal Cross-Section 16 mm²
Total Length 29 mm
Weight Per 100 Pieces 0.6 kg
c1 [See Images] 8.5
c2 [See Images] 9.5
d1 [See Images] 6
d2 [See Images] 8.5
d4 [See Images] 8
