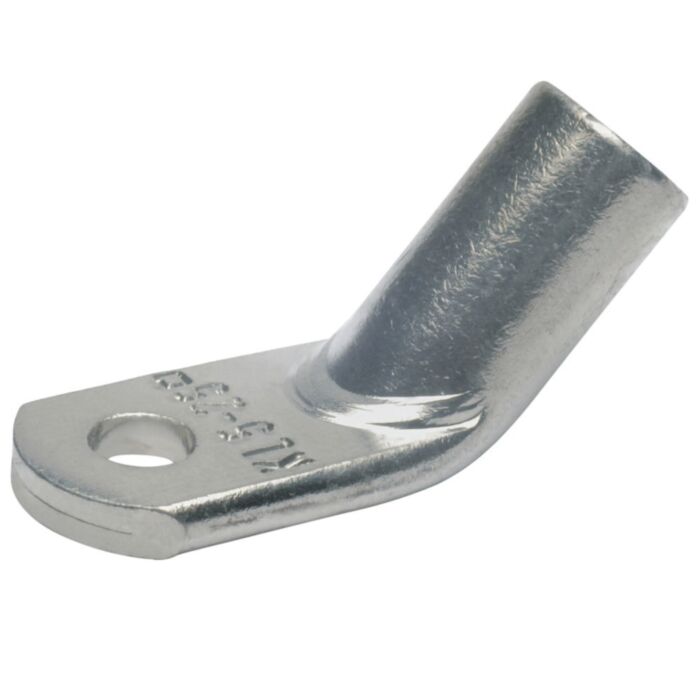

Klauke 47R1645 (M16 ) 70mm² 45° Angled Tubular Cable Lug - Copper & Tin Plated

Klauke 47R1645 (M16 ) 70mm² 45° Angled Tubular Cable Lug - Copper & Tin Plated

Manufacturer: KLAUKE

SKU: 47R1645

Back order for delivery on 27th October 2026

This 70mm² 45° angled tubular cable lug has a simple and safe connection, due to the flat contact surfaces and internal chamfer

Reliable assignment due to item designation on the cable lug

Made from copper (EN13600) and is tin-plated to protect against corrosion

For use with multi-stranded round conductors, e.g. to DIN 60228 Cl. 2, and pre-rounded multi-stranded sector shaped conductors

Click here for product info
£4.03 £3.36
In stock
GBP

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £3.36 £4.03
50+ £2.69 £3.23
100+ £2.35 £2.82
500+ £2.02 £2.42
1000+ £1.95 £2.34
Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • This 70mm² 45° angled tubular cable lug has a simple and safe connection, due to the flat contact surfaces and internal chamfer.
  • Reliable assignment due to item designation on the cable lug.
  • Made from copper (EN13600) and is tin-plated to protect against corrosion.
  • For use with multi-stranded round conductors, e.g. to DIN 60228 Cl. 2, and pre-rounded multi-stranded sector shaped conductors.

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M16
Lug Material Copper/Tin
Lug Style 45° Angled Tubular Cable Lug
a [See Images] 21 mm
b [See Images] 28 mm
Nominal Cross-Section 70 mm²
Weight 0.0561 kg
Weight Per 100 Pieces 5.61 kg
d1 [See Images] 12 mm
d2 [See Images] 17 mm
c1 [See Images] 16 mm
d4 [See Images] 16.5 mm
Packaged Weight 0.0561 kg
