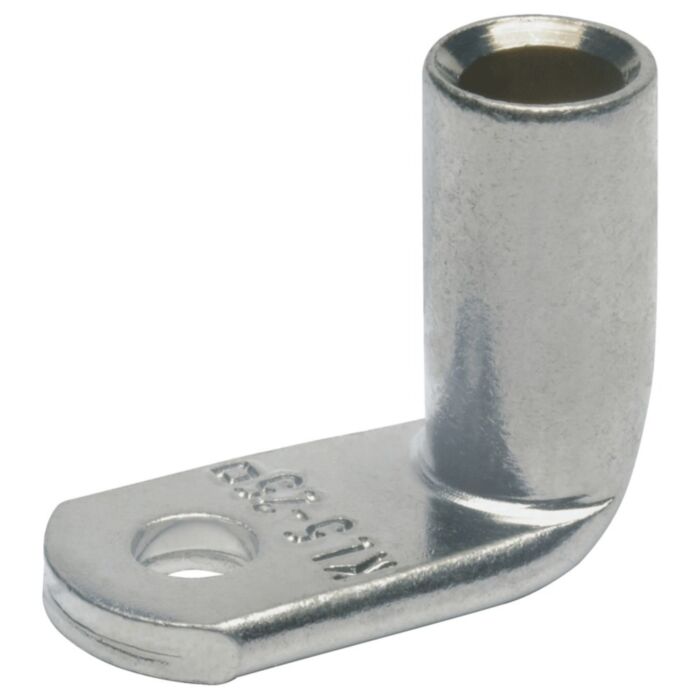

Klauke 44R5 (M5) 25mm² 90° Angled Tubular Cable Lug - Copper & Tin Plated

Klauke 44R5 (M5) 25mm² 90° Angled Tubular Cable Lug - Copper & Tin Plated

Manufacturer: KLAUKE

SKU: 44R5

Back order for delivery on 4th December 2026

90° angled (L-shaped) tubular cable lug for multi-stranded round conductors, e.g. to DIN EN 60228 Cl. 2

Designed for pre-rounded multi-stranded sector shaped conductors

Has a flat contact surface created by special angle pressing technology

Click here for product info
£2.12 £1.77
In stock
GBP

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £1.77 £2.12
25+ £1.37 £1.64
50+ £1.10 £1.32
100+ £0.96 £1.15
500+ £0.82 £0.99
1000+ £0.80 £0.96
Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • This 25mm² 90° angled tubular cable lug has an annealed material, which optimises material and crimping properties.
  • Has a simple and safe connection, due to the flat contact surfaces and internal chamfer.
  • Reliable assignment due to item designation on the cable lug.
  • Made from copper (EN13600) and is tin-plated to protect against corrosion.

Cable Compatibility

Cable typeDescription
Multi-strand uncompacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M5
Lug Material Copper/Tin
Lug Style 90° Angled [L-Shaped] Tubular Cable Lug
a [See Images] 15 mm
b [See Images] 14 mm
Maximum Temperature 180 °C
Nominal Cross-Section 25 mm²
Weight 0.014 kg
Weight Per 100 Pieces 1.4 kg
d1 [See Images] 7 mm
d2 [See Images] 5.5 mm
c1 [See Images] 7.5 mm
d4 [See Images] 10 mm
l3 9 mm
Packaged Weight 0.014 kg
