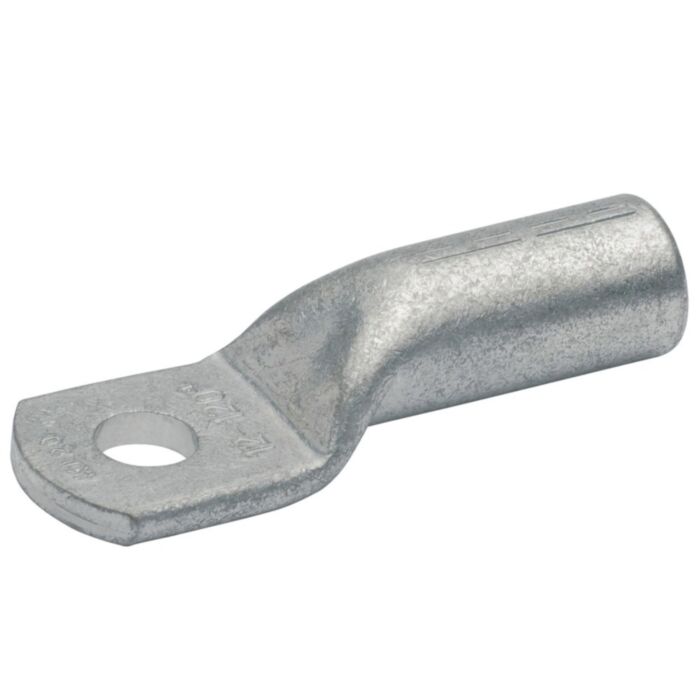

Klauke 104R10 (M10) 25mm² Compression Cable Lug - Copper & Tin Plated

Klauke 104R10 (M10) 25mm² Compression Cable Lug - Copper & Tin Plated

Manufacturer: KLAUKE

SKU : 104R10

Compression cable lug for round conductors, e.g. to DIN EN 60228 Cl. 1, 2, 5 and 6

For use with non-tension copper cables, e.g. to DIN 48201-1

For pre-rounded multi-stranded sector shaped conductors

With code number for clear tool assignment

Designed according to DIN 46235, with lugs created according to this standard to be used on one, several, fine and super-fine stranded conductors

PRODUCT INFO
£1.31 £1.09
In stock
  • 27 In stock
  • Estimated UK Delivery Time: Next Day Delivery

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £1.09 £1.31
50+ £0.87 £1.04
100+ £0.76 £0.91
500+ £0.65 £0.78
1000+ £0.63 £0.76

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • This 25mm² cable lug is easy to process due to crimp markings.
  • Annealed material optimises material and crimping properties.
  • Simple and safe connection due to flat contact surfaces and internal chamfer.
  • Made from copper (EN13600), which is tin plated to protect against corrosion.

Cable Compatibility

Cable typeDescription
Multi-strand compacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Multi-strand uncompacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Copper stranded conductors (DIN 48201-1), aluminium or aluminium alloy conductors for overhead lines (DIN EN 50182).
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Extra-fine-strand conductor (Class 6 according to DIN EN 60228) made from bright finish or metal-encased annealed copper.
Fine-strand conductor (Class 5 according to DIN EN 60228) made from bright finish or metal-encased annealed copper.
Single-strand conductor (Class 1 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Single-strand compacted sector-shaped conductor 90° (Class 1 according to DIN EN 60228) made from aluminium or aluminium alloy.
Single-strand compacted sector-shaped conductor 120° (Class 1 according to DIN EN 60228) made from aluminium or aluminium alloy.

Technical Details

Manufacturer Klauke
Connection Bolt Diameter M10
Lug Material Copper/Tin
Lug Style Compression Cable Lug
a [See Images] 20.5 mm
b [See Images] 17 mm
Nominal Cross-Section 25 mm²
Total Length 39 mm
c1 [See Images] 12.5
c2 [See Images] 13
d1 [See Images] 7
d2 [See Images] 10.5
d4 [See Images] 10
