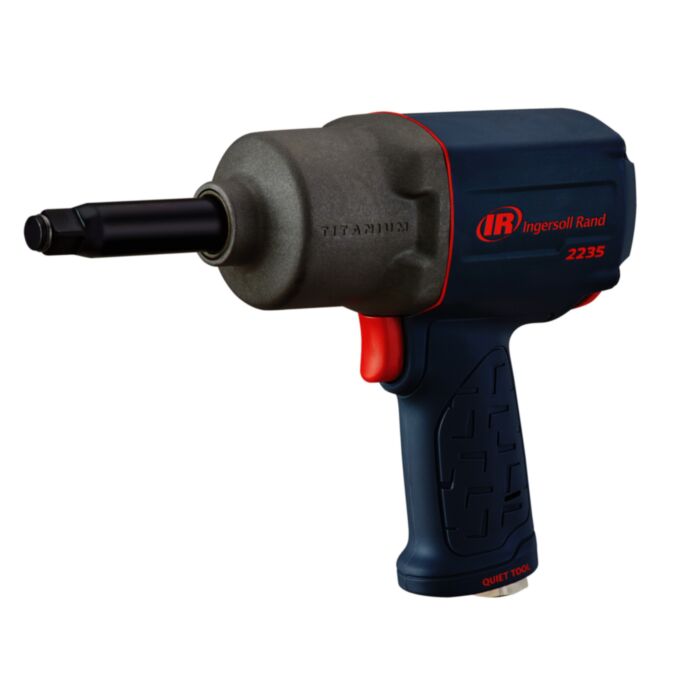

Ingersoll Rand 2235QTIMAX-2 1/2" Square Drive Pneumatic Impact Wrench with 2" Anvil - 1760Nm

Ingersoll Rand 2235QTIMAX-2 1/2" Square Drive Pneumatic Impact Wrench with 2" Anvil - 1760Nm

Manufacturer: INGERSOLL RAND

SKU : 2235QTIMAX-2

EAN13 : 0663023120010

1/2" air impact wrench with a 2" anvil that can deliver 1760Nm of torque

The titanium hammer housing of this impact wrench is chemical and impact resistant

Has patented quiet tool technology

Comes with a two-year warranty

PRODUCT INFO
£330.79 £275.66
In stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Air powered impact wrench with a 2" anvil that provides 1760Nm of torque, which is powered by Ingersoll Rand’s finely tuned twin-hammer impact mechanism.
  • Has a four-position power regulator and one-handed forward/reverse push button.
  • Every component, mechanism and function of this 1/2" impact gun has been rigorously tested, ensuring that it will always perform in the toughest circumstances.
  • This tool is lightweight at only 2.1kg, ensuring that it provides only minimal fatigue when used over extended periods of time.
  • The titanium hammer housing of his impact wrench is chemical and impact resistant.
  • Has patented quiet tool technology to reduce sound levels.
  • Has a two-year warranty.

Technical Details

Drive Size 1/2"
Male Drive Size 1/2"
Grip Type Pistol
Blows Per Minute [BPM] 1,220
Drive Type Square
Actuation/Throttle Type/Switch Type Trigger
Anvil Length 2"
Exhaust Location Bottom
Impact Mechanism Twin Hammer
Lubrication 105-1LB
Motor Reverse Bias
Retainer Type Friction Ring
Standards/Certifications CE
Vanes 7
Air Consumption @ Load 680 l/min
Air Inlet Size 0.25 "
Air Pressure 90 PSI
Average Air Consumption 170 l/min
Forward/Fastening Torque [ft-lb] 870 ft-lb
Forward/Fastening Torque [Nm] 1180 Nm
Height 183 mm
Impacting Sound Power 102.9 dB
Impacting Sound Pressure 91.9 dB
Maximum Bolt Diameter 0.75 "
Maximum Free Speed 8500 RPM
Maximum Pressure 6.2 Bar
Maximum Reverse Torque [ft-lb] 900 ft-lb
Maximum Reverse Torque [Nm] 1220 Nm
Minimum Hose Size 0.375 "
Power to Weight Ratio [Nut-busting Torque/Weight] 260 ft-lb
Side to Center Distance 36.83 mm
Total Length 244 mm
Vibration Level 7.7 m/s2
Weight 2.27 kg
Width 74 mm
