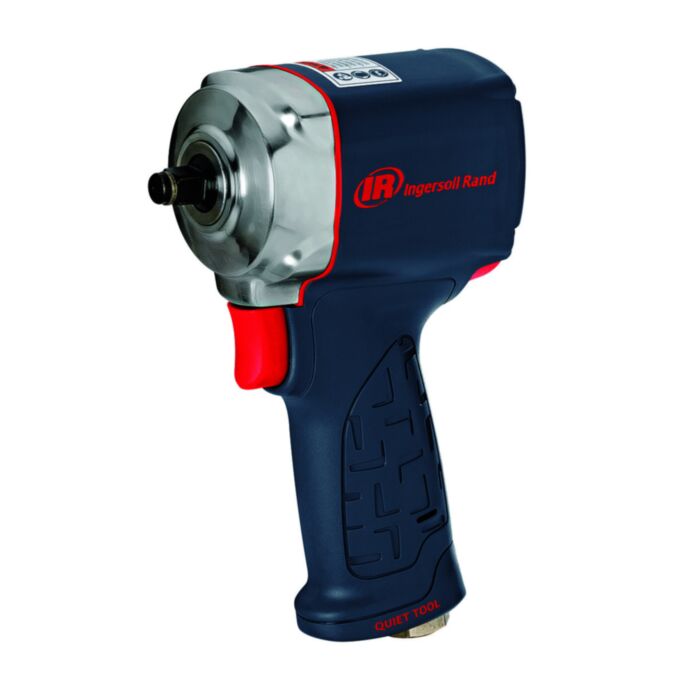

Ingersoll Rand 15QMAX 3/8" Square Drive Air Impact Wrench - 515Nm

Ingersoll Rand 15QMAX 3/8" Square Drive Air Impact Wrench - 515Nm

Manufacturer: INGERSOLL RAND

SKU : 15QMAX

EAN13 : 0663023126043

3/8" square drive air impact wrench, which can deliver up to 515Nm of nut-busting torque

Compact size makes it easy to get to hard to reach fasteners

Has a double impact mechanism and weighs only 1.1kg

Has a two year warranty

PRODUCT INFO
£163.46 £136.22
In stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • A compact 3/8" square drive pneumatic impact wrench, which can deliver up to 515Nm of nut-busting torque.
  • Has a double impact mechanism and weighs only 1.1kg.
  • Has Ingersoll Rand's patented quiet tool technology, which reduces the noise level of this impact wrench.
  • The one-handed forward/reverse push button and three-mode power regulator provides maximum control and performance.

Technical Details

Manufacturer Ingersoll Rand
Drive Size 3/8"
Male Drive Size 3/8"
Grip Type Pistol
Blows Per Minute [BPM] 1,350
Drive Type Square
Actuation/Throttle Type/Switch Type Trigger
Anvil Length Standard
Exhaust Location Bottom
Impact Mechanism Twin Hammer
Lubrication 105-1LB
Motor Reverse Bias
Retainer Type Friction Ring
Standards/Certifications ISO 11148-6, Cagi B186, ISO 28927-2, ISO 15744
Vanes 7
Air Consumption @ Load 481 l/min
Air Inlet Size 0.25 "
Air Pressure 90 PSI
Average Air Consumption 113 l/min
Forward/Fastening Torque [ft-lb] 310 ft-lb
Forward/Fastening Torque [Nm] 420 Nm
Height 180 mm
Impacting Sound Power 100.7 dB
Impacting Sound Pressure 89.7 dB
Maximum Bolt Diameter 0.4375 "
Maximum Free Speed 6000 RPM
Maximum Pressure 6.2 mbar
Maximum Reverse Torque [ft-lb] 380 ft-lb
Maximum Reverse Torque [Nm] 515 Nm
Power to Weight Ratio [Nut-busting Torque/Weight] 158.3 ft-lb
Side to Center Distance 30.48 mm
Total Length 117 mm
Vibration Level 5.5 m/s2
Weight 1.09 kg
Width 61 mm
