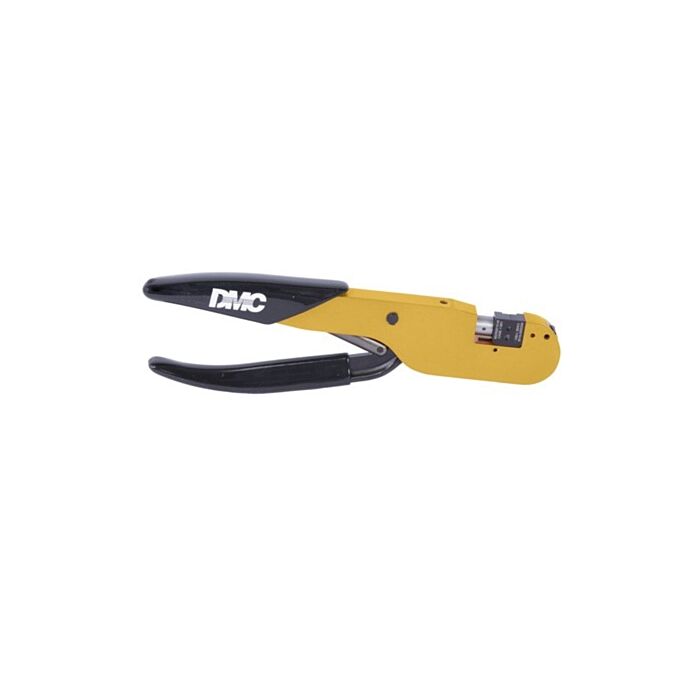

DMC HX3 Multi-Purpose C-Frame Crimp Tool - Mil-Spec M22520/10-01

DMC HX3 Multi-Purpose C-Frame Crimp Tool - Mil-Spec M22520/10-01

Manufacturer: DMC

SKU: HX3

NSN: 5120013358582, 5120001174830, 5120014783358

Used with Daniels "X" series crimp dies

This tool is the equivalent to the Astro 620215

Qualified to AS22520/10

Click here for product info
5 questions have been answered about this product
£541.60 £451.33
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £451.33 £541.60
10+ £433.28 £519.94
25+ £406.20 £487.44

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

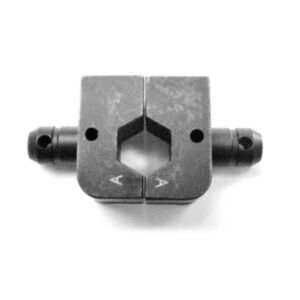

  • This crimp tool is light weight and qualified to AS22520/10. It utilises an extensive variety of interchangeable hexagonal dies (sold separately).
  • This tool can be used to crimp a wide range of co-axial and tri-axial connectors and contacts that conform to MIL-DTL-39012 or AS39029.
  • This crimp tool is 230mm long, has a ratchet and is easy to use, with the crimping dies being kept in place by internal spring clips. They may also be permanently secured when required by pressing a roll pin into the surrounding holes.
  • Dies are also available for insulated and uninsulated terminal lugs, wire splices and end caps relating to M7928, MS17143, MS25036, MS25181, MS27429, MS25274, MS20659, M81824, MS21003 through MS21015, as well as commercial part numbers.

Technical Details

Manufacturer DMC
For Use When Crimping Co-Axial Connectors, Tri-Axial Connectors
Includes Connectors No
MIL-SPEC Yes
Use with Positioner or Turret Head No
NSN 5120013358582
NSN2 5120001174830
NSN3 5120014783358
Total Length 9 "
Weight 0.94 lb

Customer Reviews

Customer Questions & Answers

Customer Questions

What is the primary use of crimping tools?

Crimping tools are used to join two pieces of metal by deforming one or both to hold each other. They are commonly used in electrical work to create secure connections between wires and connectors.

How do I choose the right crimping tool?

Choose a crimping tool based on the type and size of connectors you are using. Ensure it matches the specifications of your project and is compatible with the wire gauge and terminal type.

What are the types of crimping tools available?

Crimping tools come in manual, battery, hydraulic and pneumatic varieties. Manual crimpers are suitable for smaller jobs, while battery powered, hydraulic and pneumatic crimpers are used for heavy-duty or repetitive tasks.

What are some common applications for crimping tools?

Crimping tools are used in various applications including electrical wiring, network cable assembly, wire harnesses, automotive repairs and plumbing. They ensure reliable and durable connections in these fields.

What safety measures should I take when using crimping tools?

Always wear safety glasses to protect your eyes from debris. Follow the manufacturer's instructions, ensure the tool is in good condition and avoid using excessive force to prevent damaging the tool or connectors.
