Klauke L-BOXX with Electromechanical Crimping Tool EK50ML 0.14mm² - 50mm² & Extensive Additional Equipment

Klauke L-BOXX with Electromechanical Crimping Tool EK50ML 0.14mm² - 50mm² & Extensive Additional Equipment

Manufacturer: KLAUKE

SKU : LBOXXEK50ML

EAN13 : 4012078846073

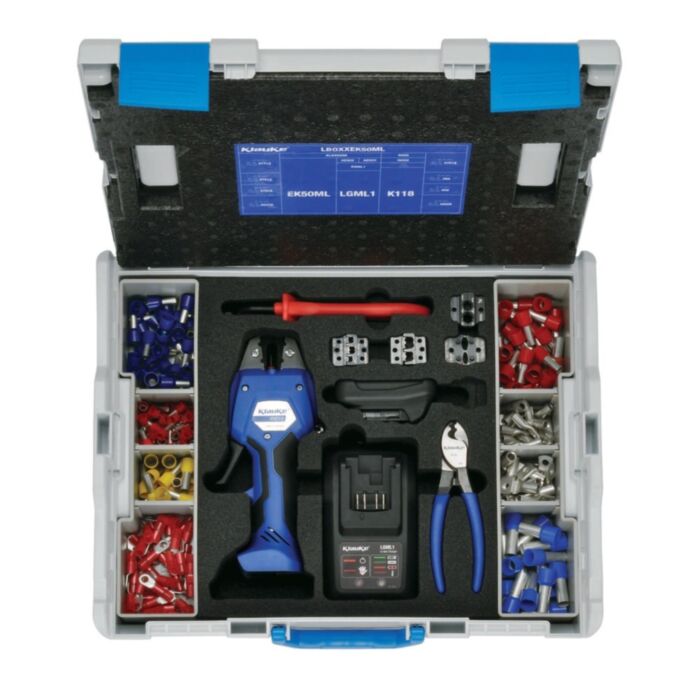

Electro-mechanical crimp tool set which includes, crimp tool, cutting tool, dies, lugs and sleeves

Click here for product info
1 question has been answered about this product
£1,029.60 £858.00
In stock
  • 2 In stock
  • Estimated UK Delivery Time: Next Day Delivery

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £858.00 £1,029.60
5+ £809.91 £971.89
10+ £785.12 £942.14
25+ £752.06 £902.47

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Includes a battery powered crimp tool with a crimp range between 0.14mm² - 50mm², with suitable accessories.
  • All the tools are stored in a case, providing safe and secure storage.

Technical Details

Manufacturer Klauke
Insulated [VDE] No
Hydraulic or Battery Powered Battery
Grip Type In-line
Bench Mounted No
Head Design Open
Crimping Cycle Under 1.5 seconds (based on connection material)
Battery Capacity 1.5 Ah
Battery Voltage 10.8 V
Charging Time 40 Minutes
Crimping Range From 0.14 mm²
Crimping Range Up To 50 mm²
Maximum Operating Temperature 40 °C
Minimum Operating Temperature -10 °C
Weight Including Battery 0.96 kg

Customer Questions & Answers

Customer Questions

What do Klauke recommend for test intervals for their battery crimping tools?

Klauke recommend that an inspection should be carried out annually, but the tool should only require maintenance every three years or when it reaches 10,000 crimps, whichever comes first.
Did you find what you were looking for?

Set Includes

Product Can Cut Through Hydraulic or Battery Powered Grip Type Connection Bolt Diameter Lug Material Lug Style Bench Mounted Crimp Profile Head Design Crimping Cycle Battery Capacity Battery Voltage Charging Time Crimping Range From Crimping Range Up To Cross-Section From Cross-Section To Maximum Crimp Force Maximum Cutting Capacity Maximum Operating Temperature Minimum Operating Temperature Nominal Cross-Section Total Length Voltage Weight Weight Including Battery Weight Per 100 Pieces
LGML1 - - - - - - - - - - - - - - - - - - - - - - - 230 V 0.5 kg - -
EK50ML - Battery In-line - - - No - Open Under 1.5 seconds (based on connection material) 1.5 Ah 10.8 V 40 Minutes 0.14 mm² 50 mm² - - 15 kN - 40 °C -10 °C - - - - 0.96 kg -
4R8 - - - M8 Copper/Tin Tubular Cable Lug - - - - - - - - - - - - - - - 25 mm² 32 mm - - - 1.31 kg
3R8 - - - M8 Copper/Tin Tubular Cable Lug - - - - - - - - - - - - - - - 16 mm² 29 mm - - - 0.93 kg
R505 - - - - - - - Hexagonal - - - - - - - 16 mm² 25 mm² - - - - - - - - - -
K118 Copper - - - - - - - - - - - - - - - - - 12 mm - - - 165 mm - 170 g - -
Part No. Description
RAM10.8 V / 1.5 Ah, Li-Ion (16.2 Wh) battery
LGML1Charger for 10.8 V Li-Ion batteries, 230V
K118Hand-operated cutting tool for aluminium and copper cables to 12mm diameter
KL645GSKCable knife with blade protection, 1000 V
AE502Crimping dies AE 50, 10mm² - 25mm²
47612Insulated Cable end sleeve, 10mm², 22mm long
47712Insulated Cable end sleeve, 16mm², 24mm long
47818Insulated Cable end sleeve DIN 46228 part 4, 25mm²
R505Crimping dies R 50, 16mm² - 25mm²
3R8Tubular cable lug without inspection hole, 16mm², M8, copper which is tin plated
4R8Tubular cable lug without inspection hole, 25mm², M8, copper which is tin plated
AE503Crimping dies AE 50, 35mm² - 50mm²
47918Insulated Cable end sleeve DIN 46228 part 4, 35mm²
48025Insulated Cable end sleeve DIN 46228 part 4, 50mm², 40mm long
IS5072Crimping dies IS 50, single crimping, 10mm² - 16mm²
652C6Insulated fork-shaped type solderless terminal, M6, 10mm²
LBOXX136LFGL-BOXX with front handle (Width/Depth/Height: 442mm x 357mm x 151mm )
