Ingersoll Rand W5153-K22B-EU 1/2" Square Drive 20V Cordless Impact Wrench Set - 540Nm

Ingersoll Rand W5153-K22B-EU 1/2" Square Drive 20V Cordless Impact Wrench Set - 540Nm

Manufacturer: INGERSOLL RAND

SKU : W5153-K22B-EU

EAN13 : 0663023152417

540Nm 20V cordless impact wrench with a 1/2" square drive

Has 540Nm of nut-busting torque and 400Nm of reverse torque

The IQV power control system includes four modes

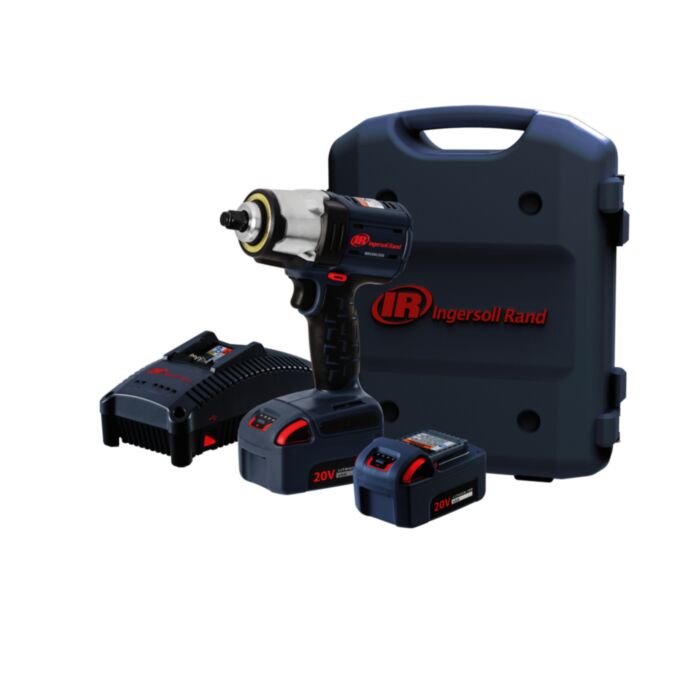

Includes impact wrench, 2 x BL2022 Li-Ion batteries 5.0 Ah, charger and carrying case

Comes with a three year warranty

£450.91 £375.76
In stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • 540Nm 20V cordless impact wrench with a 1/2" square drive that has a tapered front end for enhanced access to confined areas.
  • Weighs only 2.45kg (including battery), enhancing operator comfort when using over long periods of time.
  • Has the Ingersoll Rand IQV Power Control system, which has four modes -
    • Max Power
    • Mid Power
    • Wrench Tight (with shut off)
    • Hand Tight (with shut off)
  • The 360° shadowless LED light ring lights up the area you are working on and has a task light mode and four dimmable settings.
  • This impact wench is protected by a chemical-resistant composite housing and a patented steel-reinforced frame, which is built to withstand repeated drops onto concrete and exposure to shop fluids.
  • Includes impact wrench, 2 x BL2022 Li-Ion batteries 5.0 Ah, charger and carrying case.

Technical Details

Drive Size 1/2"
Grip Type Pistol
Blows Per Minute [BPM] 3,100
Number of Batteries Required 1
Drive Type Square
Anvil Length Standard
Built-In Light Yes
Hand Tight Free Speed [RPM] 800
Impact Mechanism Ball and Cam
Lubrication 67-4T
Maximum Wrench Tight Free Speed [RPM] 1600
Motor Brushless Motor
Standards/Certifications Ul Listed, Csa Certified
Wireless Tool Tracking No
Number of Batteries Included 2
Forward/Fastening Torque [ft-lb] 280 ft-lb
Forward/Fastening Torque [Nm] 380 Nm
Half Power Forward Torque [ft-lb] 230 ft-lb
Half Power Forward Torque [Nm] 312 Nm
Maximum Hand Tight Forward Torque [ft-lb] 9 ft-lb
Maximum Hand Tight Forward Torque [Nm] 12 Nm
Head Width 58 mm
Height 211 mm
Height with Battery 264.16 mm
Impacting Sound Power 101 dB
Impacting Sound Pressure 90 dB
Maximum Free Speed 2100 RPM
Maximum Reverse Torque [ft-lb] 295 ft-lb
Maximum Reverse Torque [Nm] 400 Nm
Minimum Hand Tight Forward Torque [ft-lb] 2 ft-lb
Minimum Hand Tight Forward Torque [Nm] 3 Nm
Total Length 183 mm
Vibration Level 16.1 m/s2
Voltage 20 V
Weight 1770 g
Weight Including Battery 2.45 kg
Wrench Tight Forward Torque [ft-lb] 24 ft-lb
Wrench Tight Forward Torque [Nm] 33 Nm
