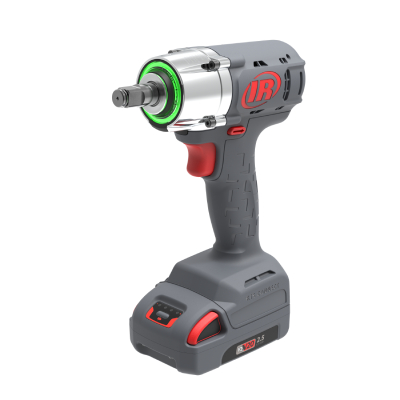

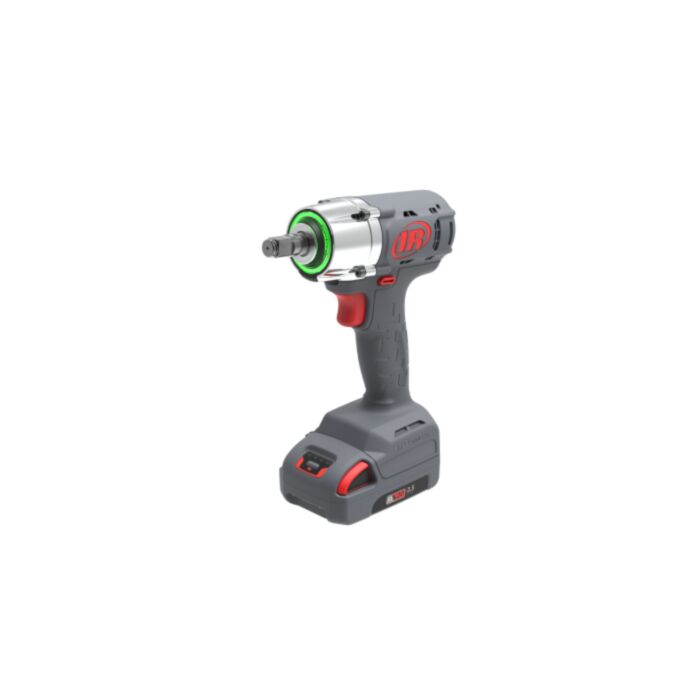

Ingersoll Rand RTS Connect Series 20V Cordless Pulse Tools 8 - 225 Nm

New

Ingersoll Rand RTS Connect Series 20V Cordless Pulse Tools 8 - 225 Nm

Manufacturer: INGERSOLL RAND

SKU: RTS

Cordless pulse tool that can be wirelessly connected to the INSIGHTqcx™ MTC controller

The proprietary torque control algorithm delivers consistent, repeatable fastening every time

Provides 40 torque levels and seven flush levels

Built in multi-colour work light

Powerful, brushless DC motor

Dual speed non contact trigger for smooth and efficient operation

Click here for product info
Out of stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • The Ingersoll Rand RTS Connect series pulse tools blend responsive action and torque control seamlessly.
  • With a torque range between 8Nm - 225Nm.
  • The Ingersoll Rand® proprietary torque control algorithm powers the simple and flexible tightening system, changing the game in reliable fastening.
  • Provides 40 torque levels and seven flush levels.
  • The built in multi-colour, 360° status beam LED ring lights up the work area, and with the cycle status indicator provides clear visual feedback, helping reduce defects and ensure quality control.
  • With a brushless DC motor which provides top range durability.
  • Dual speed non contact trigger designed for smooth, efficient operation and reduced user fatigue.
  • Balanced, ergonomic and lightweight meaning maximum worker comfort in repetitive tasks.
  • The programmable settings include -
    • Basic setup via the tool display
    • Advanced setup via INSIGHT™ Connect mobile app
    • Expert setup via INSIGHTqcx™ MTC controller
  • Wireless connectivity via -
    • Wi-Fi 2.4 and 5 Ghz
    • Radio (802.15.4)
    • Bluetooth
    • USB-C
  • Has a multi-tool connection, which means up to 16 tools can be wirelessly connected to the INSIGHTqcx™ MTC controller, reducing your hardware footprint.
  • Compatible with the IQV20™ battery and charger platform.

ALL PRODUCTS IN THIS RANGE

Model Drive Retainer Type Fastener Size Torque Range (in-lbs) Torque Range (Nm) Weight w/o Battery (lbs) Weight w/o Battery (kg) Length w/o Socket (in) Length w/o Socket (mm) Side to Center Distance (in) Side to Center Distance (mm)
RTS025PQ4 1/4" Hex Quick-Change M6-M8 70-220 8-25 2.3 1.05 6.1 155 1.2 30.5
RTS060PS6 3/8" Square Pin Detent M8-M10 105-530 12-60 2.4 1.07 6.4 163 1.2 30.5
RTS060PH6 3/8" Square Hog Ring/Thru Hole M8-M10 105-530 12-60 2.4 1.07 6.5 164 1.2 30.5
RTS060PS8 1/2" Square Pin Detent M8-M10 105-530 12-60 2.4 1.09 6.7 169 1.2 30.5
RTS060PH8 1/2" Square Hog Ring/Thru Hole M8-M10 105-530 12-60 2.4 1.09 6.7 170 1.2 30.5
RTS140PS8 1/2" Square Pin Detent M10-M14 265-1240 30-140 2.4 1.1 6.7 169 1.2 30.5
RTS140PH8 1/2" Square Hog Ring/Thru Hole M10-M14 265-1240 30-140 2.4 1.1 6.7 170 1.2 30.5
RTS225PS8 1/2" Square Pin Detent M12-M18 530-2000 60-225 2.5 1.12 6.7 169 1.2 30.5
RTS225PH8 1/2" Square Hog Ring/Thru Hole M12-M18 530-2000 60-225 2.5 1.12 6.7 170 1.2 30.5

Technical Details

Manufacturer Ingersoll Rand
Drive Size 1/2"
Grip Type Pistol
Number of Batteries Required 1
Drive Type Square
Battery Type IQV20
Built-In Light Yes
Motor Brushless Motor
Retainer Type Quick-Change, Pin Detent or Hog Ring/Thru Hole
Standards/Certifications Conforms to UL STD.62841-1 and 62841-2-2. Certified to CSA STD.C22.2 No. 62841-1 AND 62841-2-2.
Number of Batteries Included 0
Impacting Sound Power 103 dB
Impacting Sound Pressure 95 dB
Maximum Free Speed 2700 RPM
Side to Center Distance 30.5 mm
Total Length 170 mm
Vibration Level 14.8 m/s2
Voltage 20 V
Weight 1.12 kg
Fastener Size M6 - M18
Pulses Per Minute [PPM] 3,600
Torque Range 8 - 225Nm
Data Recording No
Tool Finder Yes
