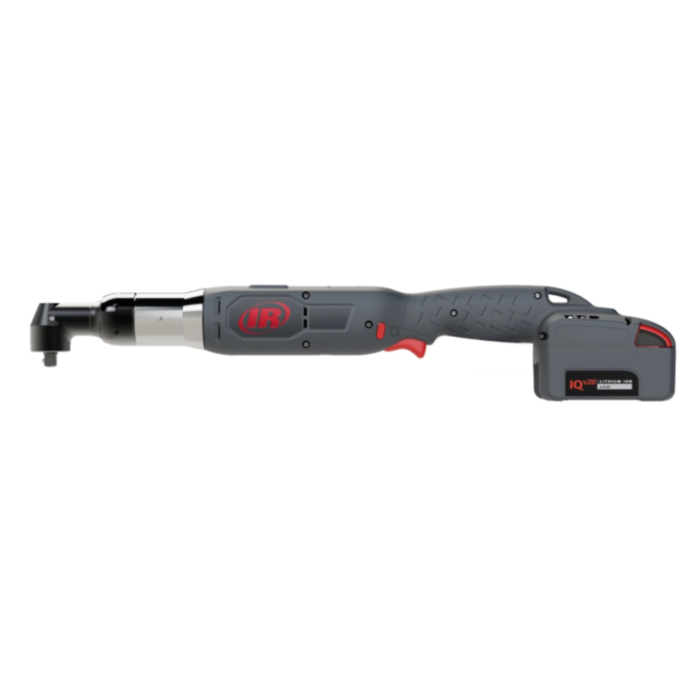

Ingersoll Rand QX Series Cordless Transducerised Nutrunners with ETS 5.4 - 80 Nm

New

Ingersoll Rand QX Series Cordless Transducerised Nutrunners with ETS 5.4 - 80 Nm

Manufacturer: INGERSOLL RAND

SKU: QXNAT

Featuring patented Ergonomic Tightening System (ETS)

All the capabilities found in the QX Series without the torque reaction

Lightweight, compact and ergonomic design

Provides real-time data insights, process tracking and remote configurability

Up to 10 Tools connected to Controller

Fieldbus and MES Interface enables seamless control system integration

Click here for product info
Out of stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • The QX Series of Ingersoll Rand transducerised screwdrivers have been engineered for high speed precision assembly in data driven manufacturing environments.
  • These variants include Ingersoll Rand's Ergonomic Tightening System (ETS) which significantly reduces torque reaction.
  • Can be implemented seamlessly into any production setup.
  • The closed-loop transducerised control ensures precise torque and angle accuracy, minimizing variability while supporting Industry 4.0 initiatives with real-time data insights, process tracking and remote configurability.
  • These tools can utilise one of three ETS modes, simplyfying setup, these include Ergonomic Mode, Performance Mode and Productivity Mode.

Additional Features

  • Visual operator feedback using green and red lights.
  • Fieldbus and MES Interface enables seamless control system integration.
  • Designed for Smart Tool Conversion – Replaces non-intelligent fastening tools with torque and angle control with intuitive feedback using green, red, and yellow indicators for fastening effectiveness.
  • Compatible with Ingersoll Rand® IQV™ battery platform.
  • Closed Loop Transducer Control – Precise torque and angle measurement with real-time feedback reduces variability and ensures consistent fastening accuracy.
  • The lightweight, compact and ergonomic design reduces strain and effort on workers.
  • ETS ( Ergonomically Tuned Strategy) variants minimise torque reaction by up to 63%.
  • Robust design supports continuous and high volume usage.
  • Supports multiple fastening configurations (32 Psets) within a single tool, reducing the need for multiple tools in the production environment.
  • Super bright LED headlight with programmable on and off times.
  • Durable DC brushless motor tested beyond a million cycles.
  • Designed with fewer parts in order to simplify maintenance and reduce downtime.

ALL PRODUCTS IN THIS RANGE

Model Display Torque Range (Nm) Free Speed (RPM) Drive Size/Type Communication Battery Type Weight w/out Battery (kg) Side to Center (mm) Length (mm) Height with Slim Battery (mm) Height with Large Battery (mm)
QXN2AT27ES6 No Display 5.4-27 330 3/8 in. Square USB Only 20V Li-ion 1.68 17.2 552 80.6 100
QXN5AT40ES08 No Display 8.0-40 545 1/2 in. Square USB Only 40V Li-ion 2.27 21.6 586.1 80.6 100
QXN5AT80ES08 No Display 12.0-80 375 1/2 in. Square USB Only 40V Li-ion 2.27 21.6 586.1 80.6 100

Technical Details

Manufacturer Ingersoll Rand
Drive Size 3/8", 1/2"
Cordless Yes
Grip Type Angle
Torque Range [Nm] 5.4 - 80 Nm
Drive Type Square
Actuation/Throttle Type/Switch Type Trigger
Battery Type 20V/40V Li-ion
Built-In Light Yes
Maximum Adjustable RPM 545
Minimum Adjustable RPM 330
Reversible Yes
Height 80.6 mm
Maximum Torque 80 Nm
Minimum Torque 5.4 Nm
Side to Center Distance 21.6 mm
Total Length 586.1 mm
Voltage 40 V
Weight 2.27 kg
Communication USB Cable
With Display No
With Ergonomic Tightening System [ETS] Yes
Data Recording Yes
Tool Finder Yes
