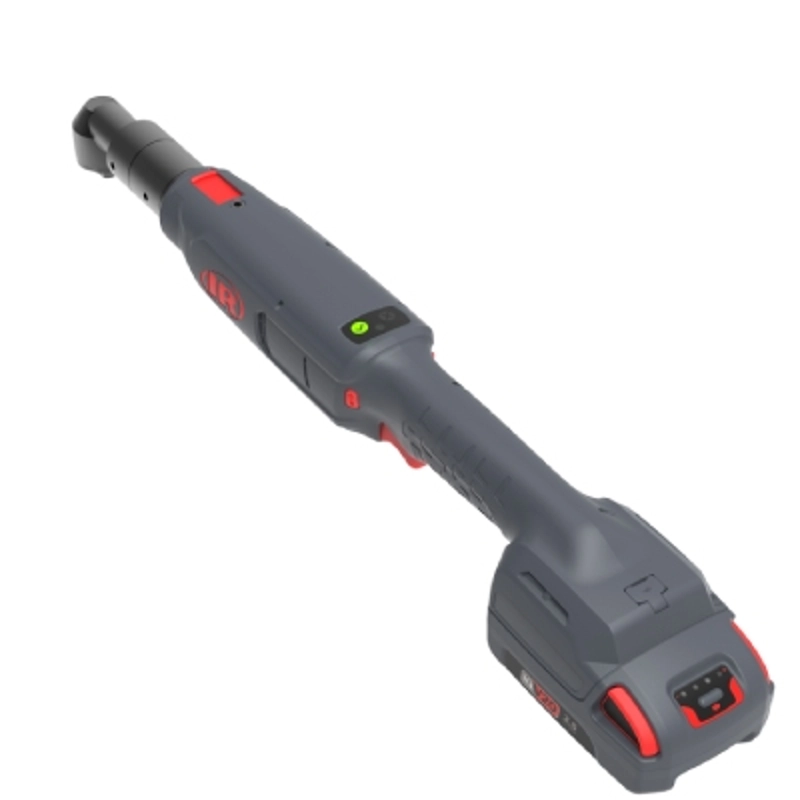

Ingersoll Rand QC Series 3/8" 20V Cordless Programmable Clutch Nutrunner 15 - 30Nm

New

Ingersoll Rand QC Series 3/8" 20V Cordless Programmable Clutch Nutrunner 15 - 30Nm

Manufacturer: INGERSOLL RAND

SKU: QCP2A30S6

Will last over 500k cycles in harsh assembly environments

Achieves Cmk >1.67 at +/- 10% accuracy

With a lockable, tamper-proof clutch that delivers up to 30 Nm of torque

Supports rapid programming of advanced parameters to meet specific application needs

Built in multi-colour work light

Powerful, brushless DC motor

Click here for product info
Out of stock

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • The QC Series Clutch Nutrunners have been engineered to withstand over 500,000 cycles in high speed assembly environments, ensuring outstanding durability and long service life.
  • With an auto shutoff clutch, the tools achieve Cmk > 1.67 at ±10% accuracy for precise, repeatable torque control.
  • A lockable, tamper-proof clutch mechanism that can deliver up to 30 Nm of torque.
  • The built in multi-colour, 360° status beam headlight illuminates the work area, and with the cycle status indicator provides clear visual feedback, helping reduce defects and ensure quality control.
  • With a brushless DC motor which provides top range durability.
  • Dual speed non contact trigger designed for smooth, efficient operation and reduced user fatigue.
  • Balanced, ergonomic and lightweight means maximum worker comfort in repetitive tasks.
  • Compatible with the IQV20™ battery and charger platform.
  • Unlock faster and smarter tool configurations with programmable parameters, making it easy to meet specific application requirements.
  • The QC Series clutch tools allow for many programmable settings via the INSIGHT™ Connect App and quick USB-C connection. You can easily customise RPM, tightening direction, shift-down (angle or time), soft-start, reverse disable, rehit detection, cycle delays and more without the need for additional technical training, special software or plant network permissions.

Technical Details

Manufacturer Ingersoll Rand
Drive Size 3/8"
Cordless Yes
Grip Type Angle
Torque Range [Nm] 15 - 30
Drive Type Square
Battery Type IQV20
Built-In Light Yes
Maximum Adjustable RPM 300
Minimum Adjustable RPM 60
Reversible Yes
Vibration Level [m/s2] 0.7000
Vibration Uncertainy K* [m/s2] 0.4000
Battery Voltage 20 V
Height 66.3 mm
Sound Power 80 dB
Sound Pressure 72 dB
Total Length 510 mm
Weight 1.68 kg
Setup Programmable
Data Recording No
Tool Finder Yes
