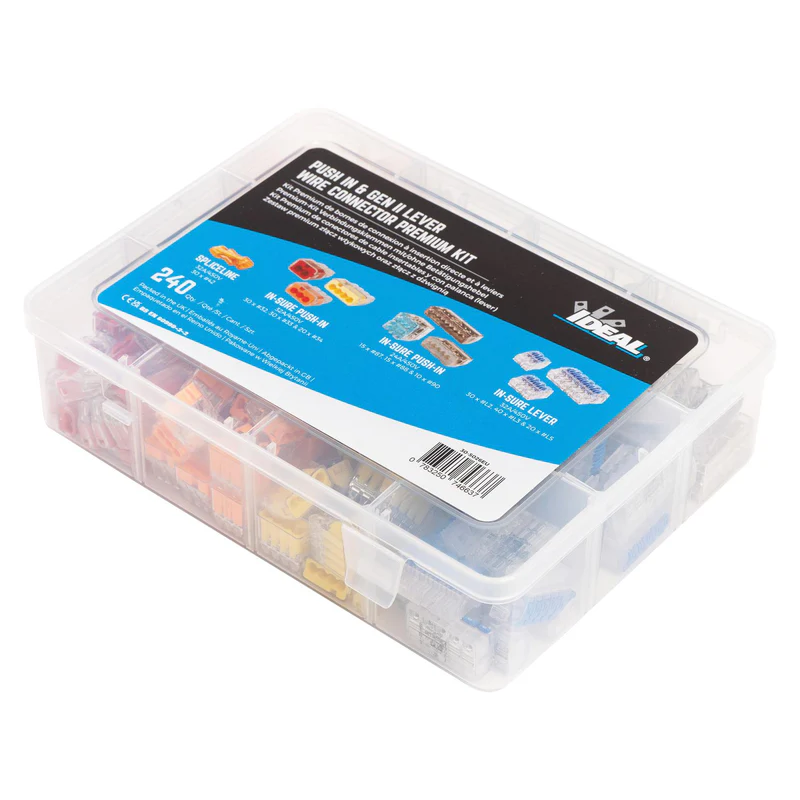

IDEAL 30-5026EU Push In and Gen II Lever Wire Connector Premium Kit (240 pcs)

New

IDEAL 30-5026EU Push In and Gen II Lever Wire Connector Premium Kit (240 pcs)

Manufacturer: IDEAL INDUSTRIES

SKU: 30-5026EU

Fast, tool-free wire termination saves installation time

Transparent housing for easy visual inspection of connections

Suitable for solid and stranded conductors

Compact, space-saving alternative to traditional connector blocks

For wires from 0.2mm² – 4.0mm² for solid and stranded plus 0.14mm² – 4.0mm² for flexible wires

Kit contains 240 connectors

Click here for product info
£62.36 £51.97
In stock
GBP

Free UK Delivery on orders over £75 including VAT

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • This handy kit includes a mixture of push in and Gen II lever wire connectors.
  • Containing 240 wire connectors in total.
  • Can accommodate multiple wires of different types and sizes from 0.2mm² – 4.0mm² for solid and stranded plus 0.14mm² – 4.0mm² for flexible wires.
  • Conform to EN 60998-1 and EN 60998-2-2 connecting device standards.
  • BS 7671:2008 (18th Edition) compliant/CE and UL approved.
  • Kit contains: 30 x 32A 2 port Gen II lever wire connectors, 40 x 32A 3 port Gen II lever wire connectors, 20 x 32A 5 port Gen II lever wire connectors, 30 x 32A 2 port push in wire connectors, 30 x 32A 3 port push in wire connectors, 20 x 32A 4 port push in wire connectors, 15 x 24A 5 port push in wire connectors, 15 x 24A 6 port push in wire connectors, 10 x 24A 8 port push in wire connectors, 30 x 32A 2 port SpliceLine® wire connectors.

Technical Details

Manufacturer Ideal Industries
Pack Size 240
Maximum Operating Temperature 105 °C
Maximum Rated Voltage 600 V
Weight 0.94 kg
Packaged Weight 1 kg

Customer Reviews

Customer Questions & Answers

Customer Questions
No Questions
Did you find what you were looking for?

Set Includes

Product Pack Size Number of Ports Maximum Nominal Cross-Section Maximum Operating Temperature Minimum Nominal Cross-Section Weight
30-1042 - - 4 mm² - 0.5 mm² 0.146 kg
30-1032 100 2 - 105 °C - 0.18 kg
30-1033 100 3 - 105 °C - 0.234 kg
30-1034 100 4 - 105 °C - 0.234 kg
30-0092 40 2 - 105 °C - 0.11 kg
30-0088 50 6 - 105 °C - 0.288 kg
30-0090 50 8 - 105 °C - 0.288 kg
30-0095 30 5 - 105 °C - 0.178 kg
30-0093 40 3 - 105 °C - 0.15 kg
