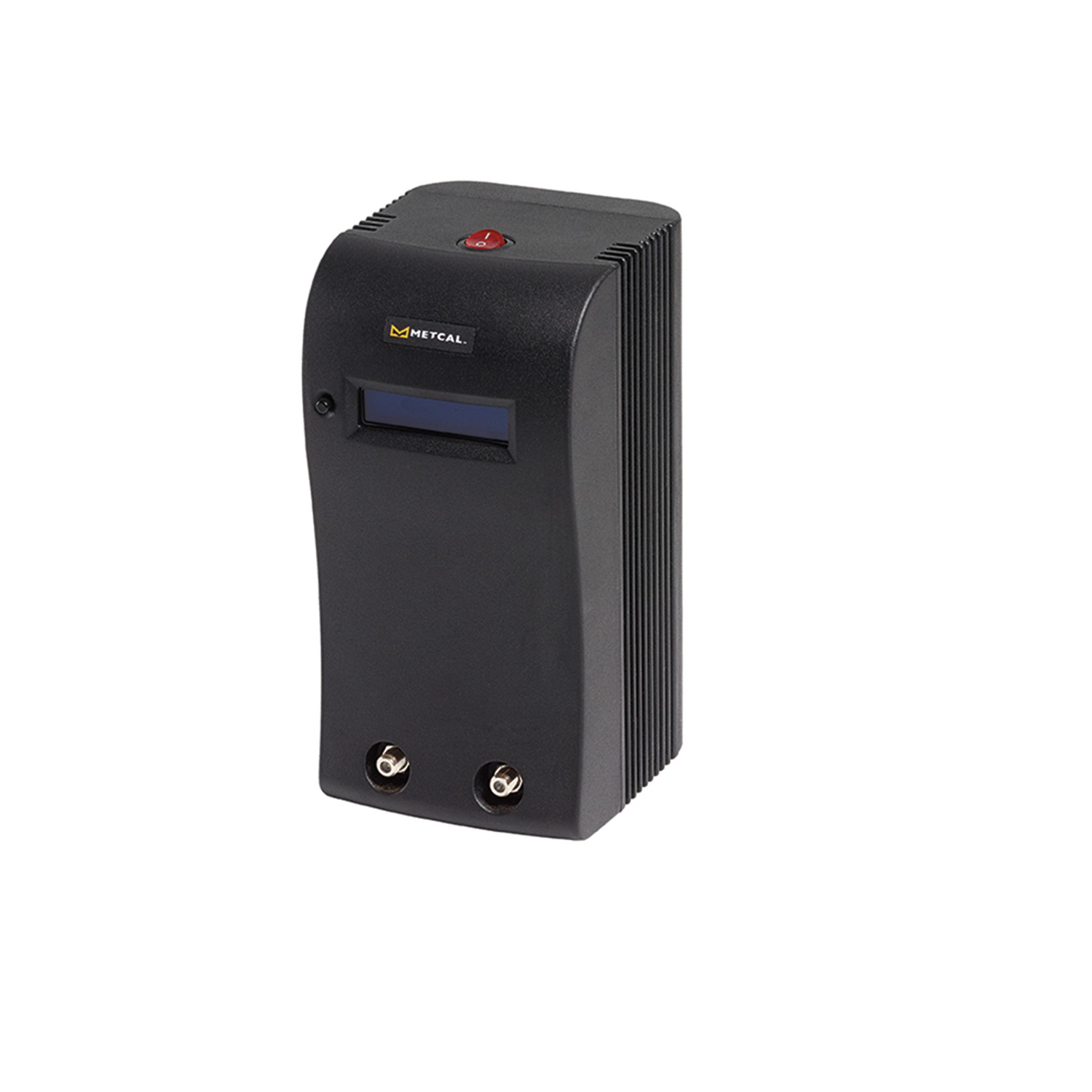

Metcal MX-PS5200 Soldering Station Power Supply for Metcal MX-5200 Series Systems

Name: Metcal MX-PS5200 Soldering Station Power Supply for Metcal MX-5200 Series Systems
SKU: MX-PS5200
Price: 458.86 GBP

Skip to the end of the images gallery

SAVE £145.94 £121.62

Skip to the beginning of the images gallery

New

Metcal MX-PS5200 Soldering Station Power Supply for Metcal MX-5200 Series Systems

Manufacturer: METCAL

SKU: MX-PS5200

In Stock: 2 available

80 W soldering, desoldering and rework power supply

Dual switchable ports allow two handpieces to share the available power dynamically

Fast thermal recovery improves productivity

Built in Net Power Meter provides graphical and numerical feedback

Ground fault monitoring detects mains earth failures and automatically

Compatible with existing and previous Metcal MX upgrade kits, SmartHeat® tip cartridges, handpieces and accessories

Click here for product info

Special Price £458.86 £382.38 Was £604.80 £504.00 You save £145.94 £121.62

In stock

GBP

Free UK Delivery on orders over £75 including VAT

Need shopping help?

Ask a Specialist

Product Information

High performance 80 W soldering, desoldering and rework power supply designed for demanding electronics assembly, repair and production applications.
Dual switchable ports allow two handpieces to share the available power dynamically, supporting two operators or one user working with different applications.
SmartHeat® induction technology maintains safe, controlled tip temperatures by automatically adjusting power output to suit the thermal demands of the joint.
Fast thermal recovery improves productivity when working with high mass components, multilayer circuit boards and lead free solder materials.
Built in Net Power Meter provides graphical and numerical feedback showing the power being delivered to the installed cartridge.
Programmable Power Save Mode can be set between 10 and 120 minutes to reduce energy consumption and extend cartridge life during periods of inactivity.
Universal 100–240 V AC input automatically adapts to the available supply voltage, allowing reliable worldwide operation without additional adaptors.
Ground fault monitoring detects mains earth failures and automatically alerts the operator and shuts down the system for improved safety.
Provides excellent process control with idle temperature stability of 1.1°C, tip to ground potential below 2 mV and tip-to-ground resistance below 2 Ω.
Compatible with existing and previous Metcal MX upgrade kits, SmartHeat® tip cartridges, handpieces and accessories.

Technical Details

Manufacturer	Metcal
ESD Safe	Yes
Connections	Dual Port, Switchable
Ground Detection	Permanent
Number of Tip Temperature Presets	0
Tip-to-Ground Potential	< 2 mV
Tip-to-Ground Resistance	< 2 Ohm
Free Range Tip Temperature Mode	No
Hand-Piece Connector	F Connector
Heating Method	Induction, SmartHeat®
Input Frequency	50/60 Hz
Sleep Timer	Yes
Standby Timer	Adjustable from 10 to 120 minutes, in 10-minute increments
Surface Resistivity	10⁵ to 10⁹ Ω/in
Tip Temperature Accuracy	Meets or exceeds IPC J-STD-001 Standard
Cable Length	183 cm
Display Size	2.5 "
Height	23.5 cm
Idle Temperature Stability	1.1 °C
Maximum Operating Temperature	55 °C
Minimum Operating Temperature	10 °C
Output Frequency	13.56 MHz
Output Power	80 W
Power Consumption	125 W
Total Length	13 cm
Voltage	240 V
Weight	3.35 kg
Width	12.1 cm
Packaged Weight	3.5 kg
