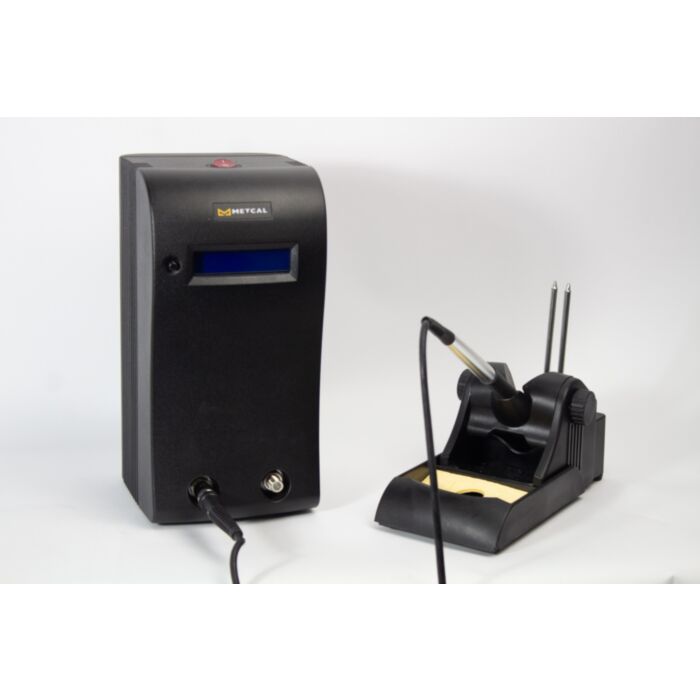

Metcal MX-5210 Soldering, Desoldering & Rework Station

Metcal MX-5210 Soldering, Desoldering & Rework Station

Manufacturer: METCAL

SKU : MX-5210

80 Watt soldering, desoldering and rework station with dual-simultaneous ports

Designed for a two users or a single user with dual applications

This system ensures soldering and rework are always performed at safe and controlled temperatures

Comes with a four year warranty

PRODUCT INFO
£743.82 £619.85
In stock
  • 5 Available
  • Estimated UK Delivery Time: Next Day

Free UK Delivery on orders over £75 including VAT

AVAILABLE NEXT DAY

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • 80 Watt soldering, desoldering and rework station with dual-simultaneous ports.
  • This system ensures soldering and rework are always performed at safe and controlled temperatures.
  • This soldering system has increased power and process control, featuring dual-simultaneous ports designed for a two users at once sharing 80 Watts of power output or a single user with dual applications.
  • Has fast time-to-recovery, and can easily work on the challenges of high mass components, multilayered boards and lead-free solders, which are seamlessly tackled by this solder and rework station.
  • Features a built in Net Power Meter, displaying both graphical and numerical power applied to the soldering cartridge.
  • PowerSave mode is adjustable from 10 minutes to two hours.
  • The AC ground monitor is able to detect line ground failures, which immediately alerts the user and shuts down the soldering system.
  • Can be used worldwide without adaptors due to the universal power supply, which can automatically sense input line voltage and then adjust accordingly.
  • Works with existing and previous MX upgrade kits, tip-cartridges, hand-pieces and accessories.
  • CE and cTUVus certified.

Technical Details

ESD Safe Yes
Connections Dual Port, Switchable
Ground Detection Permanent
Tip-to-Ground Potential < 2 mV
Tip-to-Ground Resistance < 2 Ohm
Free Range Tip Temperature Mode No
Heating Method Induction, SmartHeat
Surface Resistivity 105 - 109 Ohm
Tip Temperature Accuracy Meets or exceeds IPC J-STD-001 Standard
Cable Length 1.83 m
Height 22 cm
Idle Temperature Stability 1.1 °C
Output Frequency 13.56 MHz
Output Power 80 W
Total Length 12.1 cm
Voltage 240 V
Weight 2.65 kg
Width 12.1 cm
