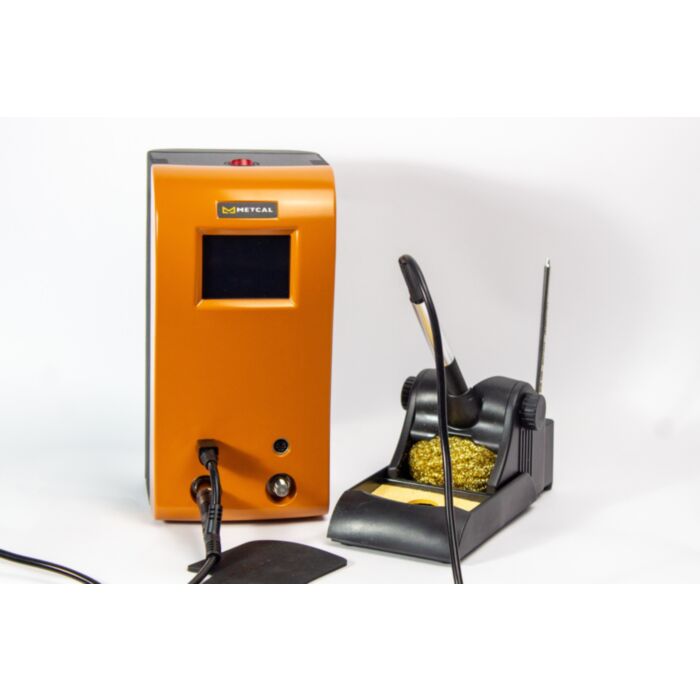

Metcal CV-5210 80 Watt Advanced Soldering & Rework System

Metcal CV-5210 80 Watt Advanced Soldering & Rework System

Manufacturer: METCAL

SKU : CV-5210

80 Watt soldering and rework station, which senses thermal load and can instantly deliver power on demand to solder joints

Has a fast, safe and repeatable process with no calibration needed

Comes with a five year warranty

Click here for product info
1 question has been answered about this product
£975.24 £812.70
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £812.70 £975.24
10+ £720.59 £864.71
25+ £677.25 £812.70

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Advanced soldering and rework station with 80 Watts of power output.
  • Has SmartHeat technology which senses thermal load and can instantly deliver power on demand to solder joints.
  • Features an embedded self-regulating heater that is able to deliver the correct amount of power for the user dependent on the requirements of the solder joint.
  • This soldering station provides a fast, safe and repeatable process with no calibration needed.
  • Patented Connection Validation IMC Formation Technology evaluates the quality of the solder joint by calculating the intermetallic compound formation and provides feedback to the user through the LED light ring integrated in the hand-piece. This removes the risk associated with the variables involved in the soldering process and removes the success and failure determination of a good solder joint from the hands of the operator, improving repeatability and measurable standards.
  • The soldering station has a 2.8” color touchscreen with bold graphics, making it easy to choose your settings.
  • Has a communications port for process traceability data and firmware graphics.
  • Precise tip temperature display.
  • There is an integrated net power meter and power graph for user understanding on the power output.
  • Patented Chip-in-Cartridge technology.
  • Closed loop bi-directional communication.
  • Stores and records cartridge attributes and can provide traceability information.
  • Protects power supply from non-conforming soldering cartridges.
  • Has backwards compatibility with MX series power supplies.
  • Password protection can be enabled to limit who can use the soldering station.
  • CE and cTUVus certified.

Set Includes

  • CV-PS500 - Power supply
  • CV-H1-AV - Advanced hand piece
  • CV-W1AV - Tip Saver work stand
  • CV-CP1 - Cartridge removal pad

Technical Details

Manufacturer Metcal
ESD Safe Yes
Connections Two connectors, single mode 80 Watt. Dual mode power is shared dynamically
Ground Detection Permanent
Tip-to-Ground Potential < 2 mV
Tip-to-Ground Resistance < 2 Ohm
Free Range Tip Temperature Mode No
Heating Method Induction, SmartHeat
Surface Resistivity 105 - 109 Ohm
Tip Temperature Accuracy Meets or exceeds IPC J-STD-001 Standard
Cable Length 1.83 m
Display Size 2.8 "
Height 23.5 cm
Idle Temperature Stability 1.1 °C
Output Frequency 13.56 MHz
Output Power 80 W
Power Consumption 125 W
Total Length 13 cm
Voltage 240 V
Weight 3.35 kg
Width 12.1 cm

Customer Questions & Answers

Customer Questions

Hi, I am a goldsmith that is looking for a soldering machine which could solder any purity of gold ranging from the lowest to the highest karat. Can you please advise me on one of your products that suits my needs?

We would recommend the GT-90 system for this application, because it has an adjustable temperature and offers a cost-effective replaceable soldering tip.
