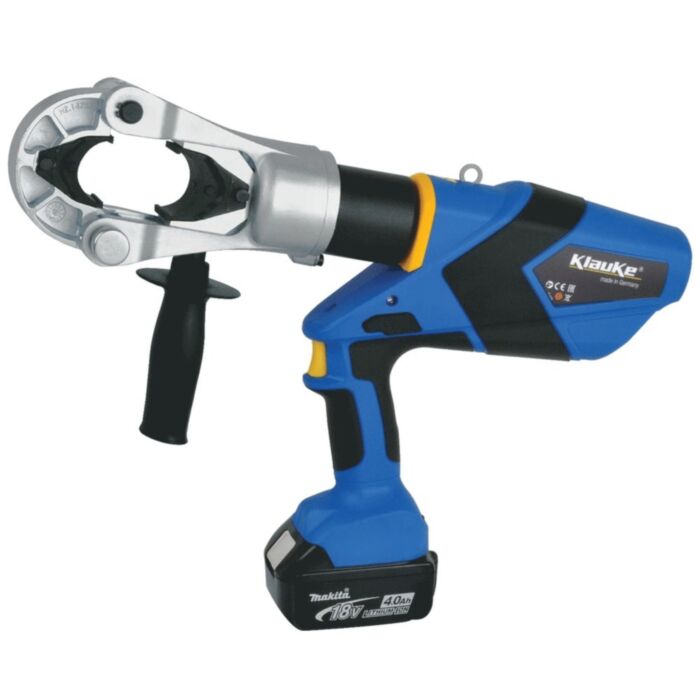

Klauke EK 135 FTCFM 10mm² - 630mm² Makita Battery-Powered Hydraulic Crimping Tool - 135kN

Klauke EK 135 FTCFM 10mm² - 630mm² Makita Battery-Powered Hydraulic Crimping Tool - 135kN

Manufacturer: KLAUKE

SKU : EK135FTCFM

Hydraulic crimp tool that has a very large crimping range up to 630mm²

Very powerful with a crimping force of 13.5 t

All tool data available at a glance thanks to display and i-press® app

PRODUCT INFO
£4,599.70 £3,833.08
In stock
  • 1 In stock
  • Estimated UK Delivery Time: Next Day Delivery

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £3,833.08 £4,599.70
5+ £3,729.91 £4,475.89
10+ £3,615.73 £4,338.88
25+ £3,463.49 £4,156.19

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • Makita battery system.
  • Easy reading of all data via Bluetooth.
  • Closed head, which is rotatable.
  • Visual and acoustic signals increase quality assurance in case of errors.
  • One-button operating concept for controlling all of the tools functions, making this simple and safe to use.
  • Fatigue proof operation due to balanced centre of gravity.
  • LED light on crimp tool for enhanced work area illumination.
  • Two-stage hydraulic system with fast feed and power stroke.
  • Automatic retraction after operation completed for increased efficiency.
  • Automatic retract stop (ARS) for positioning control in case of multiple crimps.
  • Service display shows how much life is left in the battery.

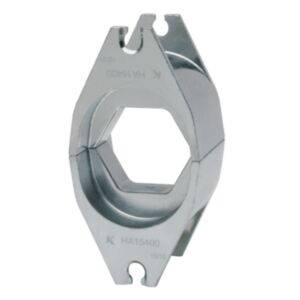

  • Suitable for use with 13-series & 15-series  interchangeable crimping dies, which provide a wide crimp profile.
  • Pistol style grip.

Technical Details

Manufacturer Klauke
Insulated [VDE] No
Hydraulic or Battery Powered Battery
Grip Type Pistol
Bench Mounted No
Head Design Closed
Crimping Cycle Approximately 10 seconds to 11 seconds (depending on crimping cross-section)
Battery Capacity 4 Ah
Battery Voltage 18 V
Charging Time 36 Minutes
Crimping Range From 10 mm²
Crimping Range Up To 630 mm²
Maximum Crimp Force 135 kN
Maximum Operating Temperature 40 °C
Minimum Operating Temperature -10 °C
Opening Width 50.8 mm
Weight Including Battery 10.2 kg

Customer Questions & Answers

Customer Questions

What size of dies come with this tool?

This product is the tool only, you would have to look at the accessories lower down the page to see the die set options.
Did you find what you were looking for?

Set Includes

Product Voltage Weight
LGL1 230 V 1 kg
Part Number Description
RAL4018 V / 4.0 Ah, Li-Ion Makita battery
UA15TAdapter for crimping dies of Series 13
KK135FTNGHard plastic carrying case
