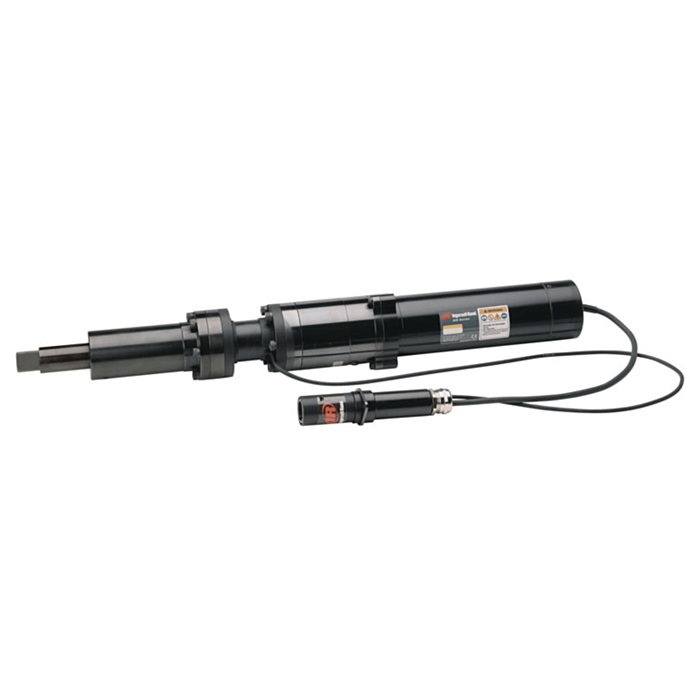

Ingersoll Rand QM9 Series Fixtured Spindles 31.5 - 2500 Nm

Manufacturer: INGERSOLL RAND

SKU: QM9

With closed loop transducerised control provides exceptionable accuracy and traceability

Flexible mounting options, an external electronics pod, and high durability cables and connections

Speed range of 51 to 278 RPM

Powerful, brushless DC motor

Preventive maintenance alerts

Click here for product info

Out of stock

Free UK Delivery on orders over £75 including VAT

Need shopping help?

Ask a Specialist

Product Information

The Ingersoll Rand QM9 Series of transducerised fixtured spindles provide superior accuracy and durability to meet your critical fastening requirements. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. Featuring a heavy-duty gear train, and reliable DC brushless motor to create a durable package, while the compact, ergonomic design helps operators keep production lines running smoothly.

Additional Features

The closed loop transducerised control provides exceptionable accuracy and traceability for advanced torque control and angle strategies.
Torque range 31.5 to 2500 Nm.
Speed range of 51 to 278 RPM.
Heavy-duty gear train and DC brushless motor provide exceptional durability.
With flexible mounting options, an external electronics pod, and high durability cables and connections, you’ll be able to integrate your spindles with ease and security.
Preventive maintenance alerts.
Comfortable ergonomic grip.

ALL PRODUCTS IN THIS RANGE

Model	Torque Range (Nm)	Max Torque (Nm)	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Length (mm)	Weight (kg)	C-C (mm)	Bolt Size	Square Drive (in)
QM9SS01KH62S16	100-1000	1000	51	195.31	50	812.84	25	130	M16+	1
QM9SS15CH62S24	150-1500	1500	51	222.18	50	871.88	32	146	M24+	1-1/2
QM9SS18CH62S24	180-1800	1800	37	222.18	50	871.88	32	146	M24+	1-1/2
QM9SS20CH62S24	200-2000	2000	31	222.18	50	871.88	32	146	M24+	1-1/2
QM9SS25CH62S24	250-2500	2500	25	222.18	50	871.88	32	146	M24+	1-1/2
QM9SS315H22S12	31.5-315	315	278	345.31	50	861	19.5	89	M10 - M16	1/2
QM9SS315H22S16	31.5-315	315	278	345.31	50	861	19.6	89	M10 - M16	1
QM9SS315H62S12	31.5-315	315	278	195.31	50	711	18.6	89	M10 - M16	1/2
QM9SS315H62S16	31.5-315	315	278	195.31	50	711	18.67	89	M10 - M16	1
QM9SS315H92S12	31.5-315	315	278	270.31	50	786	19.1	89	M10 - M16	1/2
QM9SS315H92S16	31.5-315	315	278	270.31	50	786	19.2	89	M10 - M16	1
QM9SS435H22S12	43.5-435	435	203	345.31	50	861	19.5	89	M12 - M18	1/2
QM9SS435H22S16	43.5-435	435	203	345.31	50	861	19.6	89	M12 - M18	1
QM9SS435H62S12	43.5-435	435	203	195.31	50	711	18.6	89	M12 - M18	1/2
QM9SS435H62S16	43.5-435	435	203	195.31	50	711	18.67	89	M12 - M18	1
QM9SS435H92S12	43.5-435	435	203	270.31	50	786	19.1	89	M12 - M18	1/2
QM9SS435H92S16	43.5-435	435	203	270.31	50	786	19.2	89	M12 - M18	1
QM9SS520H22S12	52-520	520	170	345.31	50	861	19.5	89	M12 - M20	1/2
QM9SS520H22S16	52-520	520	170	345.31	50	861	19.6	89	M12 - M20	1
QM9SS520H62S12	52-520	520	170	195.31	50	711	18.6	89	M12 - M20	1/2
QM9SS520H62S16	52-520	520	170	195.31	50	711	18.67	89	M12 - M20	1
QM9SS520H92S12	52-520	520	170	270.31	50	786	19.1	89	M12 - M20	1/2
QM9SS520H92S16	52-520	520	170	270.31	50	786	19.2	89	M12 - M20	1
QM9SS650H62S16	65-650	650	136	195.31	50	711	18.67	89	M14 - M22	1
QM9SS650H92S16	65-650	650	136	270.31	50	786	19.6	89	M14 - M22	1

Technical Details

Manufacturer	Ingersoll Rand
Drive Size	1/2" , 1", 1 1/2"
Cordless	No
Grip Type	In-line
Connection Bolt Diameter	M12 - M24
Torque Range [Nm]	31.5 - 2500 Nm
Drive Type	Square
Maximum Adjustable RPM	278
Minimum Adjustable RPM	51
Maximum Torque	2500 Nm
Minimum Torque	31.5 Nm
Total Length	871.88 mm
Weight	32 kg
Data Recording	Yes
Tool Finder	No
Float	50
Spindle Length	345.31
