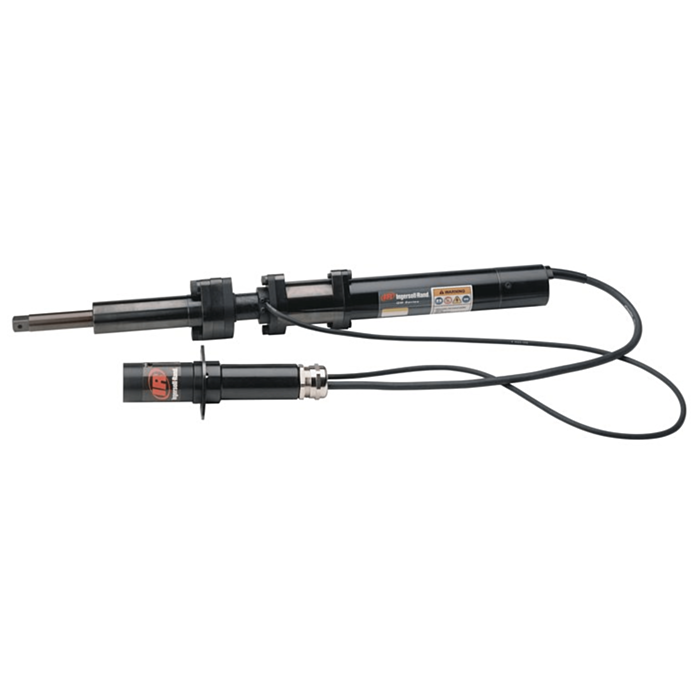

Ingersoll Rand QM5 Series Fixtured Spindles 3.5 - 90 Nm

Manufacturer: INGERSOLL RAND

SKU: QM5

With closed loop transducerised control provides exceptionable accuracy and traceability

Flexible mounting options, an external electronics pod, and high durability cables and connections

Speed range of 280 to 590 RPM

Powerful, brushless DC motor

Preventive maintenance alerts

Click here for product info

Out of stock

Free UK Delivery on orders over £75 including VAT

Need shopping help?

Ask a Specialist

Product Information

The Ingersoll Rand QM5 Series of transducerised fixtured spindles provide superior accuracy and durability to meet your critical fastening requirements. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. Featuring a heavy-duty gear train, and reliable DC brushless motor to create a durable package, while the compact, ergonomic design helps operators keep production lines running smoothly.

Additional Features

The closed loop transducerised control provides exceptionable accuracy and traceability for advanced torque control and angle strategies.
Torque range 3.5 to 90 Nm.
Speed range of 280 to 590 RPM.
Heavy-duty gear train and DC brushless motor provide exceptional durability.
With flexible mounting options, an external electronics pod, and high durability cables and connections, you’ll be able to integrate your spindles with ease and security.
Preventive maintenance alerts.
Comfortable ergonomic grip.

ALL PRODUCTS IN THIS RANGE

Model	Torque Range (Nm)	Max Torque (Nm)	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Length (mm)	Weight (kg)	C-C (mm)	Bolt Size	Square Drive (in)
QM5SS035H22S06	3.5-35	35	590	318.6	50	673	4.2	44	M6-M8	3/8
QM5SS035H22S08	3.5-35	35	590	318.6	50	673	4.2	44	M6-M8	1/2
QM5SS035H62S06	3.5-35	35	590	168.6	50	523	3.9	44	M6-M8	3/8
QM5SS035H62S08	3.5-35	35	590	168.6	50	523	3.91	44	M6-M8	1/2
QM5SS035H92S06	3.5-35	35	590	243.6	50	598	4.05	44	M6-M8	3/8
QM5SS035H92S08	3.5-35	35	590	243.6	50	598	4.05	44	M6-M8	1/2
QM5SS055H22S06	5.5-55	55	507	318.6	50	673	4.2	44	M6-M8	3/8
QM5SS055H22S08	5.5-55	55	507	318.6	50	673	4.2	44	M6-M8	1/2
QM5SS055H62S06	5.5-55	55	507	168.6	50	523	3.9	44	M6-M8	3/8
QM5SS055H62S08	5.5-55	55	507	168.6	50	523	3.9	44	M6-M8	1/2
QM5SS055H92S06	5.5-55	55	507	243.6	50	598	4.05	44	M6-M8	3/8
QM5SS055H92S08	5.5-55	55	507	243.6	50	598	4.05	44	M6-M8	1/2
QM5SS090H22S08	9.0-90	90	280	318.6	50	673	3.91	44	M8-M10	1/2
QM5SS090H92S08	9.0-90	90	280	243.6	50	598	4.19	44	M8-M10	1/2

Technical Details

Manufacturer	Ingersoll Rand
Drive Size	3/8", 1/2"
Cordless	No
Grip Type	In-line
Connection Bolt Diameter	M6 - M10
Torque Range [Nm]	3.5 - 90 Nm
Drive Type	Square
Maximum Adjustable RPM	590
Minimum Adjustable RPM	280
Maximum Torque	90 Nm
Minimum Torque	3.5 Nm
Total Length	673 mm
Weight	4.2 kg
Data Recording	Yes
Tool Finder	No
Float	50
Spindle Length	318.6
