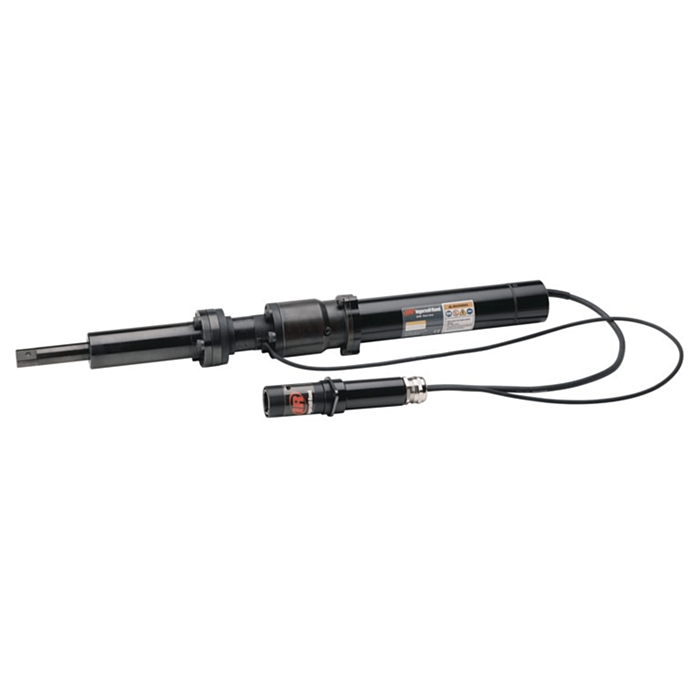

The Ingersoll Rand QM7 Series of transducerised fixtured spindles provide superior accuracy and durability to meet your critical fastening requirements. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. Featuring a heavy-duty gear train, and reliable DC brushless motor to create a durable package, while the compact, ergonomic design helps operators keep production lines running smoothly.
Additional Features
- The closed loop transducerised control provides exceptionable accuracy and traceability for advanced torque control and angle strategies.
- Torque range 19 to 220 Nm.
- Speed range of 223 to 273 RPM.
- Heavy-duty gear train and DC brushless motor provide exceptional durability.
- With flexible mounting options, an external electronics pod, and high durability cables and connections, you’ll be able to integrate your spindles with ease and security.
- Preventive maintenance alerts.
- Comfortable ergonomic grip.
ALL PRODUCTS IN THIS RANGE
| Model |
Torque Range (Nm) |
Max Torque (Nm) |
Free Speed (rpm) |
Spindle Length (mm) |
Float (mm) |
Length (mm) |
Weight (kg) |
C-C (mm) |
Bolt Size |
Square Drive (in) |
| QM7SS190H22S08 |
19-190 |
190 |
273 |
343.85 |
50 |
794 |
8.85 |
70 |
M10 - M12 |
1/2 |
| QM7SS190H22S12 |
19-190 |
190 |
273 |
343.85 |
50 |
794 |
8.9 |
70 |
M10 - M12 |
3/4 |
| QM7SS190H62S08 |
19-190 |
190 |
273 |
193.85 |
50 |
645 |
8.4 |
70 |
M10 - M12 |
1/2 |
| QM7SS190H62S12 |
19-190 |
190 |
273 |
193.85 |
50 |
645 |
8.4 |
70 |
M10 - M12 |
3/4 |
| QM7SS190H92S08 |
19-190 |
190 |
273 |
268.85 |
50 |
720 |
8.63 |
70 |
M10 - M12 |
1/2 |
| QM7SS190H92S12 |
19-190 |
190 |
273 |
268.85 |
50 |
720 |
8.67 |
70 |
M10 - M12 |
3/4 |
| QM7SS220H22S12 |
22-220 |
220 |
233 |
343.85 |
50 |
794 |
8.9 |
70 |
M10 - M14 |
3/4 |
| QM7SS220H62S12 |
22-220 |
220 |
233 |
193.85 |
50 |
645 |
8.4 |
70 |
M10 -M14 |
3/4 |
| QM7SS220H92S12 |
22-220 |
220 |
223 |
268.85 |
50 |
720 |
8.67 |
70 |
M10 - M14 |
3/4 |
