DMC TBHD1M Remote Hydraulic Crimp Head Assembly - 107 kN

DMC TBHD1M Remote Hydraulic Crimp Head Assembly - 107 kN

Manufacturer: DMC

SKU: TBHD1M

High Crimping Force of 107 kN

Accommodates conductors from 8 AWG to 4/0 AWG

Hydraulic Pump Compatibility

Click here for product info
£9,939.56 £8,282.97
In stock

Free UK Delivery on orders over £75 including VAT

Quantity Price Each Ex VAT Price Each Inc VAT
1+ £8,282.97 £9,939.56
10+ £7,951.65 £9,541.98
25+ £7,454.68 £8,945.62

Live Chat Icon

Need shopping help?

Ask a Specialist

Product Information

  • High Crimping Force: Delivers a substantial 12 tons (107 kN) of crimping force, suitable for heavy-duty applications in aerospace, military, and commercial sectors.
  • Wide Crimping Range: Accommodates conductors from 8 AWG to 4/0 AWG in military/aerospace applications and up to 750 MCM in commercial systems.
  • Die Compatibility: Compatible with a variety of die sets, including HD002 (MS23002) for insulated terminals, HD485 (MS90485) for uninsulated terminals, HD442 (MS25442) for aluminium terminals, and Boeing ST 2354 die combinations.

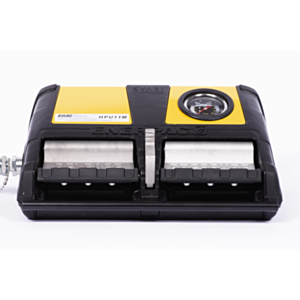

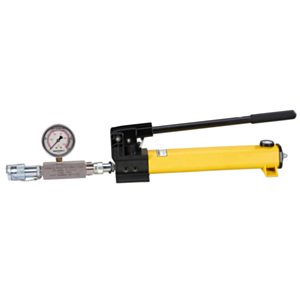

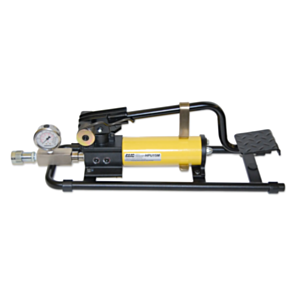

  • Hydraulic Pump Compatibility: Designed to operate with DMC's range of hydraulic pumps, including the HPU11M (air-powered), HPU12M (hand-operated), HPU13M (battery-powered), and HPU15M (foot-operated), providing flexibility to suit various operational preferences.
  • Military Specification Compliance: Qualified to MS25441-1 and conforms to AS5259/1 standards, ensuring reliability and performance in critical applications.

Technical Details

Manufacturer DMC
Insulated [VDE] No
Hydraulic or Battery Powered Hydraulic
Bench Mounted No
Head Design Closed
Maximum Crimp Force 107 kN
Total Length 10 "
Weight 8 lb
Width 6 "
